11. Analyse the given circuit to determine the Total resistance as seen from source terminals of the circuit by applying

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

11. Analyse the given circuit to determine the Total resistance as seen from source terminals of the circuit by applying

Post by answerhappygod »

11 Analyse The Given Circuit To Determine The Total Resistance As Seen From Source Terminals Of The Circuit By Applying 1
11 Analyse The Given Circuit To Determine The Total Resistance As Seen From Source Terminals Of The Circuit By Applying 1 (48.92 KiB) Viewed 54 times

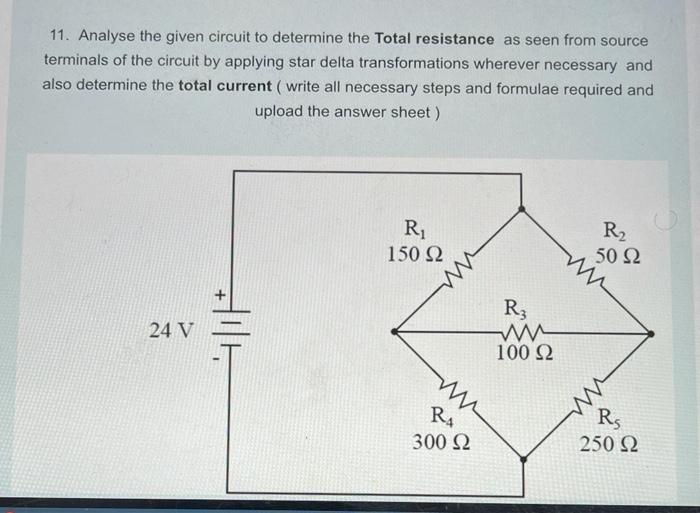

11. Analyse the given circuit to determine the Total resistance as seen from source terminals of the circuit by applying star delta transformations wherever necessary and also determine the total current ( write all necessary steps and formulae required and upload the answer sheet) Ri 150 22 R2 50 12 R3 24 V 100 22 mi R4 RS 300 Ω 250 22
