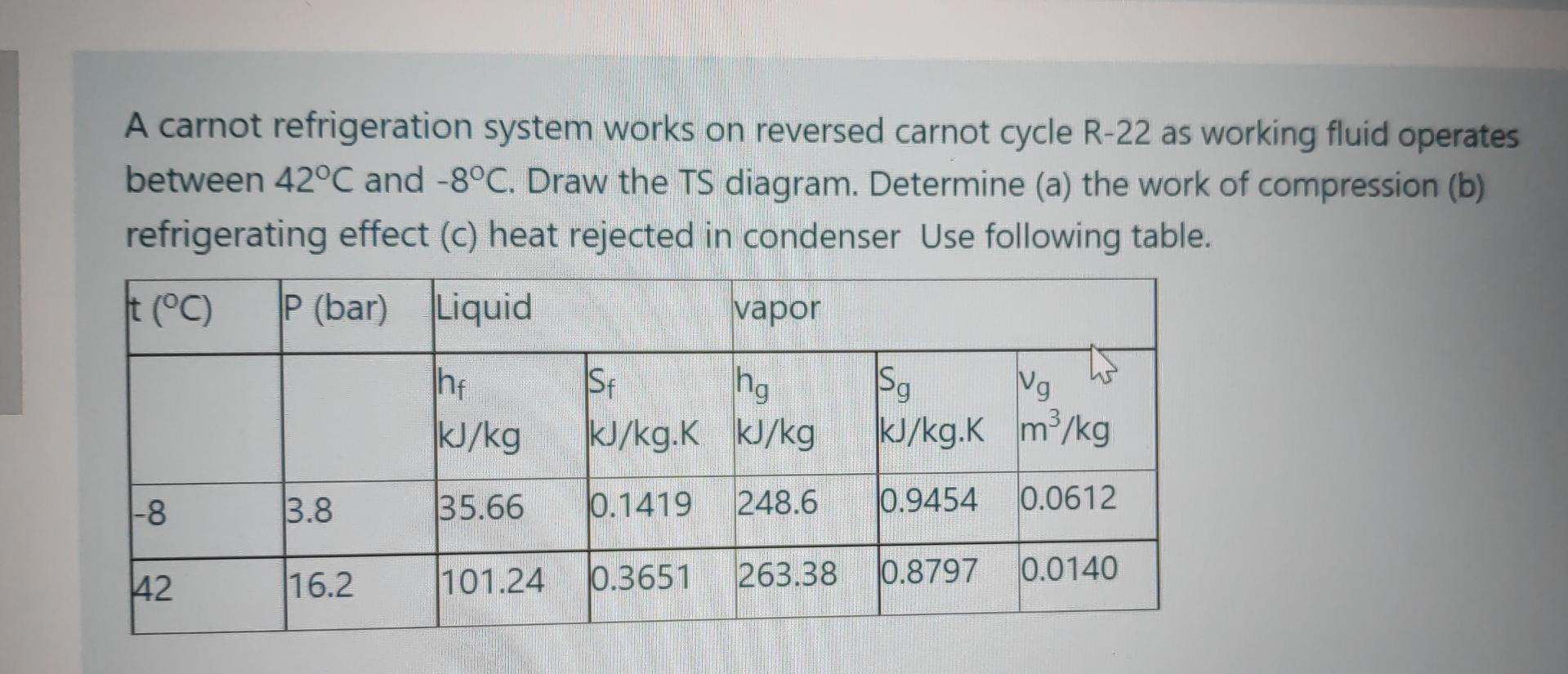

- A Carnot Refrigeration System Works On Reversed Carnot Cycle R 22 As Working Fluid Operates Between 42 C And 8 C Draw 1 (165.33 KiB) Viewed 66 times
A carnot refrigeration system works on reversed carnot cycle R-22 as working fluid operates between 42°C and -8°C. Draw
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A carnot refrigeration system works on reversed carnot cycle R-22 as working fluid operates between 42°C and -8°C. Draw
A carnot refrigeration system works on reversed carnot cycle R-22 as working fluid operates between 42°C and -8°C. Draw the TS diagram. Determine (a) the work of compression (b) refrigerating effect (c) heat rejected in condenser Use following table. t(°C) P (bar) Liquid vapor ISA Sg Vg kJ/kg |KJ/kg.K kJ/kg kJ/kg.K m®/kg The Sf hg -8 3.8 35.66 10.1419 248.6 0.9454 0.0612 116.2 42 101.24 10.3651 263.38 10.8797 0.0140 N
