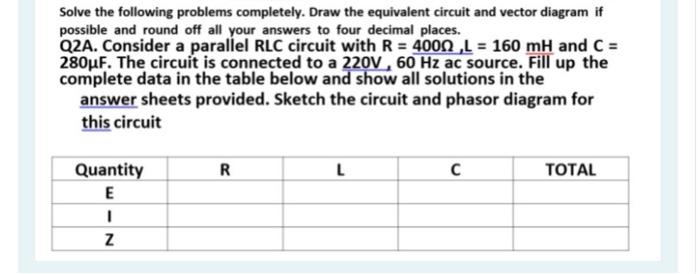

Solve the following problems completely. Draw the equivalent circuit and vector diagram if possible and round off all your answers to four decimal places. Q2A. Consider a parallel RLC circuit with R = 4000 L = 160 mH and C = 280uF. The circuit is connected to a 220V, 60 Hz ac source. Fill up the complete data in the table below and show all solutions in the answer sheets provided. Sketch the circuit and phasor diagram for this circuit R L с TOTAL Quantity E 1 Z
