+ VA Subject II. (20 pts) Consider the schematic in the figure to the right. The operational amplifier is considered ide

[answerhappygod]

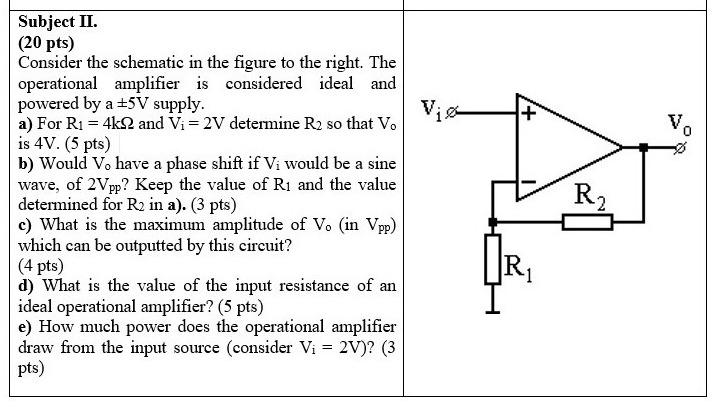

Va Subject Ii 20 Pts Consider The Schematic In The Figure To The Right The Operational Amplifier Is Considered Ide 1 (57.08 KiB) Viewed 38 times

+ VA Subject II. (20 pts) Consider the schematic in the figure to the right. The operational amplifier is considered ideal and powered by a 5V supply. a) For R1 = 4k22 and Vi= 2V determine R2 so that V is 4V. (5 pts) b) Would Vo have a phase shift if Vi would be a sine wave, of 2Vpp? Keep the value of R1 and the value determined for R2 in a). (3 pts) c) What is the maximum amplitude of V. in Vpp) which can be outputted by this circuit? (4 pts) d) What is the value of the input resistance of an ideal operational amplifier? (5 pts) e) How much power does the operational amplifier draw from the input source (consider Vi = 2V)? (3 pts) R2
