Given is the inductive load shown in the following figure 1 consisting of the Resistance R and the Inductance L as well

Post by answerhappygod »

Given Is The Inductive Load Shown In The Following Figure 1 Consisting Of The Resistance R And The Inductance L As Well 1
Given Is The Inductive Load Shown In The Following Figure 1 Consisting Of The Resistance R And The Inductance L As Well 1 (60.36 KiB) Viewed 55 times

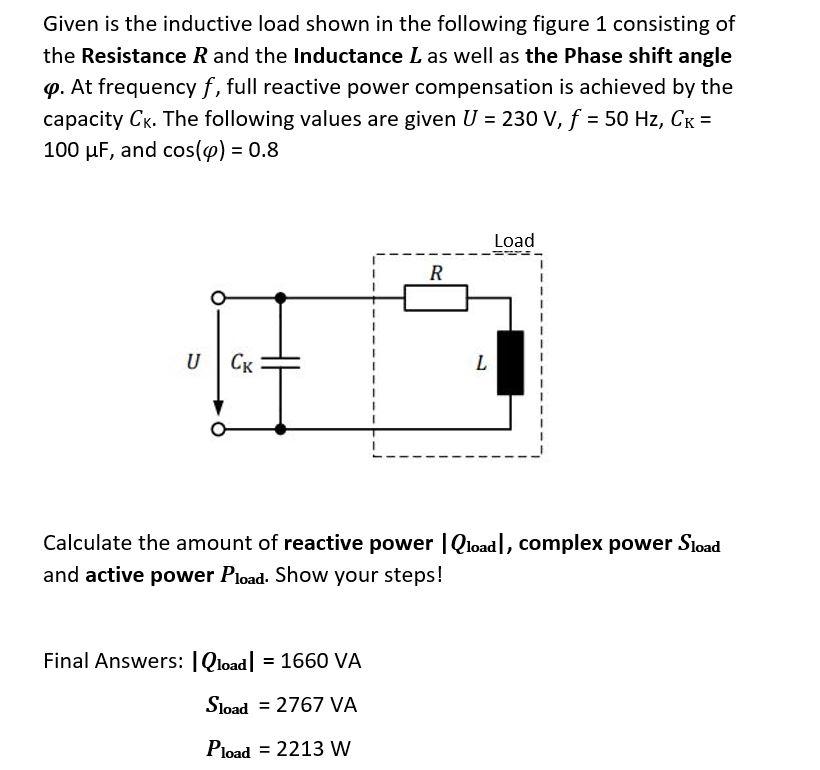

Given is the inductive load shown in the following figure 1 consisting of the Resistance R and the Inductance L as well as the Phase shift angle p. At frequency f, full reactive power compensation is achieved by the capacity Ck. The following values are given U = 230 V, f = 50 Hz, CK = 100 uF, and cos(p) = 0.8 Load R U Ск L Calculate the amount of reactive power IQload], complex power Sload and active power Pload. Show your steps! Final Answers: Qload| = 1660 VA = Sload = 2767 VA Pload = 2213 W
