6# Consider the closed-loop system below, RO- Σ D(S) G(5) OY 1 G(S) s(s+2) D(s) = K -cast -DG Find the gain K of the pro

Post by answerhappygod »

1
1 (17.53 KiB) Viewed 59 times

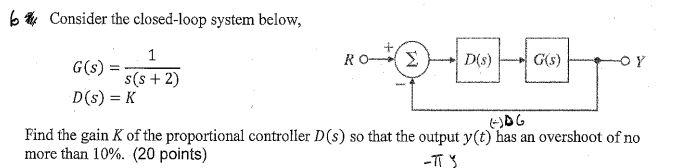

6# Consider the closed-loop system below, RO- Σ D(S) G(5) OY 1 G(S) s(s+2) D(s) = K -cast -DG Find the gain K of the proportional controller D() so that the output y(t) has an overshoot of no more than 10%. (20 points) TT
