For the cycle description given below: 1. Provide the allocation List Draw the Grafcet and obtain the grafcet equation D

[answerhappygod]

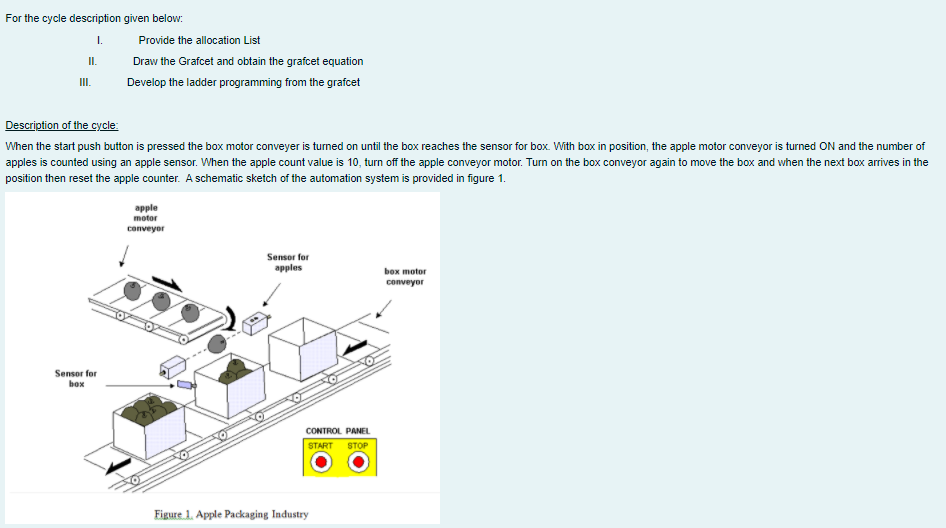

For The Cycle Description Given Below 1 Provide The Allocation List Draw The Grafcet And Obtain The Grafcet Equation D 1 (79.94 KiB) Viewed 55 times

For the cycle description given below: 1. Provide the allocation List Draw the Grafcet and obtain the grafcet equation Develop the ladder programming from the grafcet II. III. Description of the cycle: When the start push button is pressed the box motor conveyer is turned on until the box reaches the sensor for box. With box in position, the apple motor conveyor is turned ON and the number of apples is counted using an apple sensor. When the apple count value is 10, turn off the apple conveyor motor. Turn on the box conveyor again to move the box and when the next box arrives in the position then reset the apple counter. A schematic sketch of the automation system is provided in figure 1. apple motor conveyor Sensor for apples box motor conveyor Sensor for box CONTROL PANEL START STOP Figure 1. Apple Packaging Industry
