203.20.10.25/18 200.12.10.2018 ( Router A 172.16.1.1/16 Router B 172.16.1.2/16 1 192.168.20.1/24 10.10.1.1/8 172.16.10.1

[answerhappygod]

203 20 10 25 18 200 12 10 2018 Router A 172 16 1 1 16 Router B 172 16 1 2 16 1 192 168 20 1 24 10 10 1 1 8 172 16 10 1 1 (217.98 KiB) Viewed 65 times

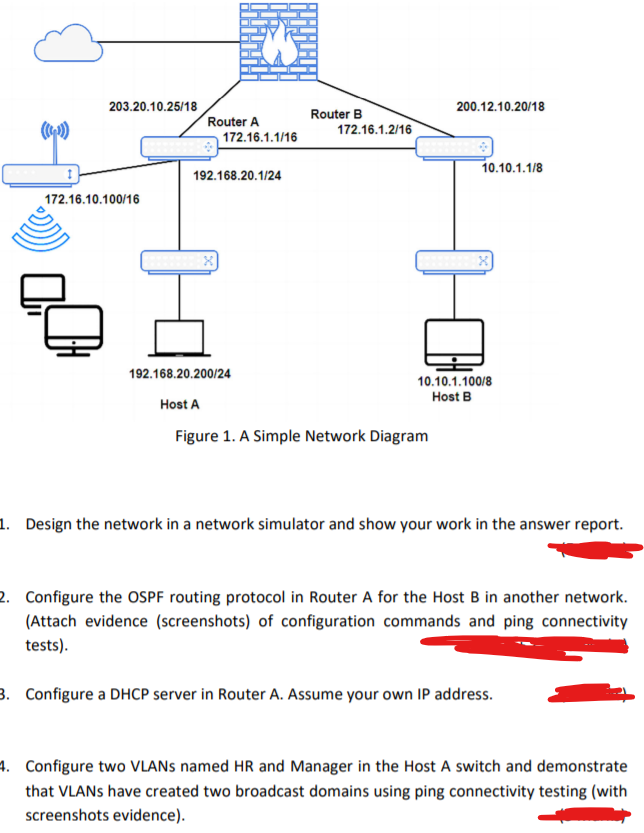

203.20.10.25/18 200.12.10.2018 ( Router A 172.16.1.1/16 Router B 172.16.1.2/16 1 192.168.20.1/24 10.10.1.1/8 172.16.10.100/16 192.168.20.200/24 10.10.1.100/8 Host A Host B Figure 1. A Simple Network Diagram 1. Design the network in a network simulator and show your work in the answer report. 2. Configure the OSPF routing protocol in Router A for the Host B in another network. (Attach evidence (screenshots) of configuration commands and ping connectivity tests). 3. Configure a DHCP server in Router A. Assume your own IP address. 4. Configure two VLANs named HR and Manager in the Host A switch and demonstrate that VLANs have created two broadcast domains using ping connectivity testing (with screenshots evidence).
