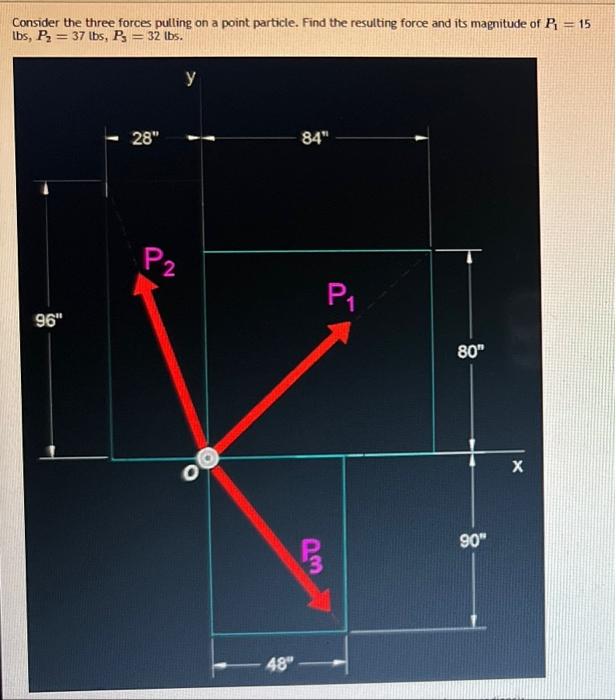

Consider the three forces pulling on a point particle. Find the resulting force and its magnitude of P = 15 tbs, P = 37 tbs, Ps=32 lbs. у 28" 84" P2 P1 96" 80" х 90" om 48"

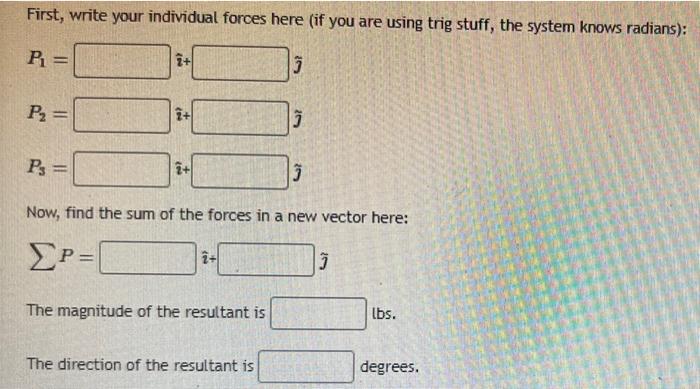

First, write your individual forces here (if you are using trig stuff, the system knows radians): PL 2+ i P2= 2+ i Ps 11 2+ Now, find the sum of the forces in a new vector here: ΣΡ= 2- 3 The magnitude of the resultant is lbs. The direction of the resultant is degrees.
