Hello please answer this problem as soon as possible. Topic is
'compression members'. I need correct answers with complete and
step by step solution. Do not shortcut your solution. I will give
an upvote if it satisfy. Thank you!
Hello Please Answer This Problem As Soon As Possible Topic Is Compression Members I Need Correct Answers With Comple 1 (27.61 KiB) Viewed 57 times

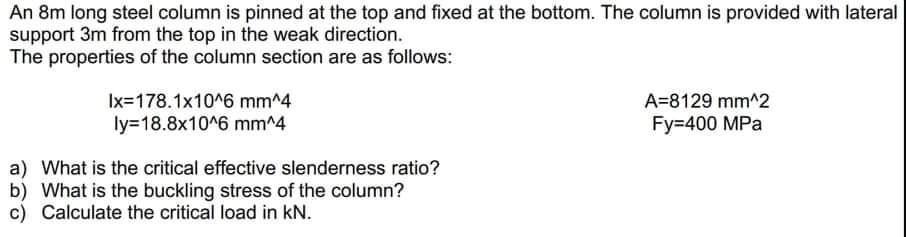

An 8m long steel column is pinned at the top and fixed at the bottom. The column is provided with lateral support 3m from the top in the weak direction. The properties of the column section are as follows: Ix=178.1x10^6 mm-4 ly=18.8x10^6 mm^4 A=8129 mm 2 Fy=400 MPa a) What is the critical effective slenderness ratio? b) What is the buckling stress of the column? c) Calculate the critical load in kN.
