QUESTION 4 Find the Norton equivalent circuit for the portions of the network external to the 47 kilo- ohm resistor and

Post by answerhappygod »

Question 4 Find The Norton Equivalent Circuit For The Portions Of The Network External To The 47 Kilo Ohm Resistor And 1
Question 4 Find The Norton Equivalent Circuit For The Portions Of The Network External To The 47 Kilo Ohm Resistor And 1 (30.91 KiB) Viewed 26 times

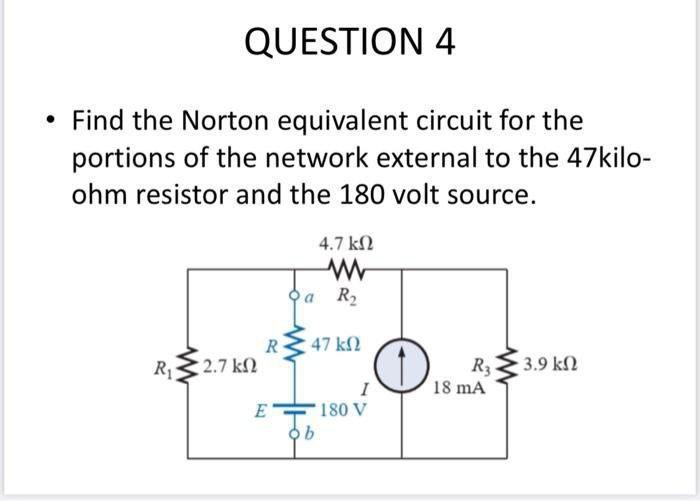

QUESTION 4 Find the Norton equivalent circuit for the portions of the network external to the 47 kilo- ohm resistor and the 180 volt source. 4.7 kA2 w & a R₂ 47 k12 R 2.7 k12 R R3 3.9 k12 18 mA E I 180 V
