A three phase full wave rectifier is shown below. The input peak phase voltage is assumed equal to Vm= 145 V. The load i

Post by answerhappygod »

A Three Phase Full Wave Rectifier Is Shown Below The Input Peak Phase Voltage Is Assumed Equal To Vm 145 V The Load I 1
A Three Phase Full Wave Rectifier Is Shown Below The Input Peak Phase Voltage Is Assumed Equal To Vm 145 V The Load I 1 (72.32 KiB) Viewed 66 times

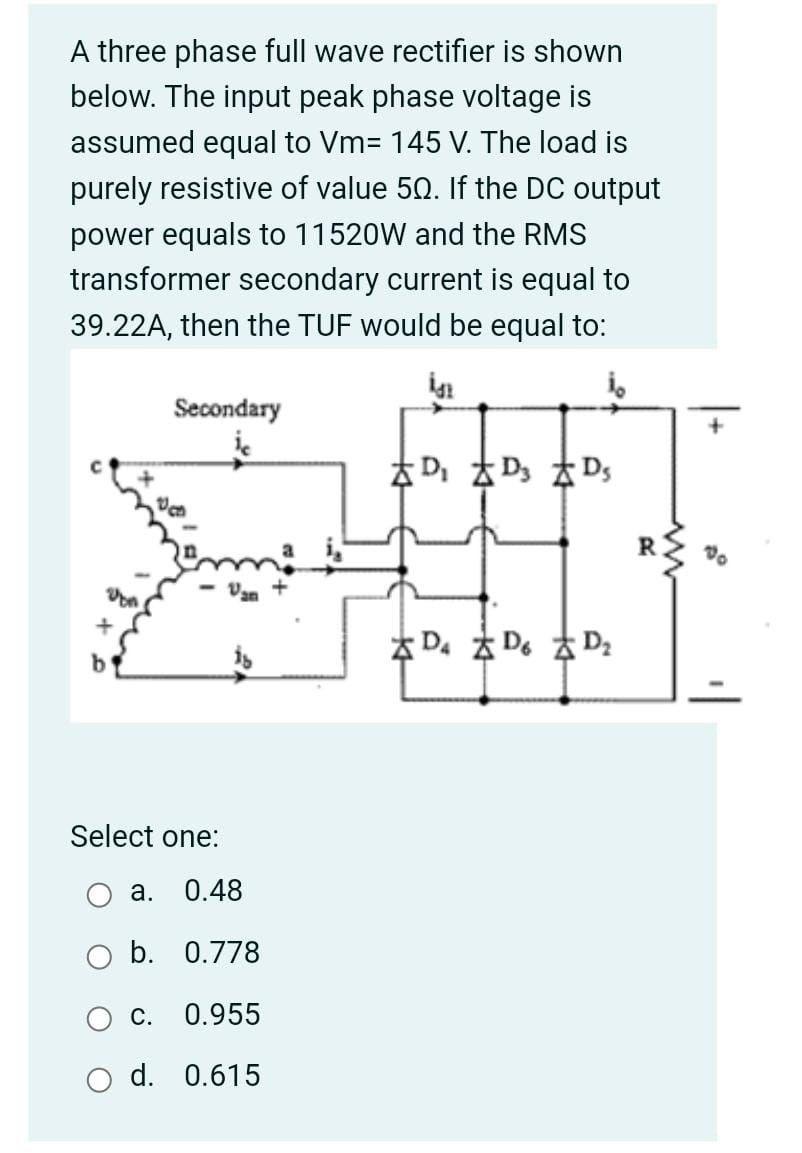

A three phase full wave rectifier is shown below. The input peak phase voltage is assumed equal to Vm= 145 V. The load is purely resistive of value 50. If the DC output power equals to 11520W and the RMS transformer secondary current is equal to 39.22A, then the TUF would be equal to: ini ܘܠܐ Secondary ic AD, DADS Vign + is DA AD AD2 Select one: a. 0.48 b. 0.778 C. 0.955 d. 0.615
