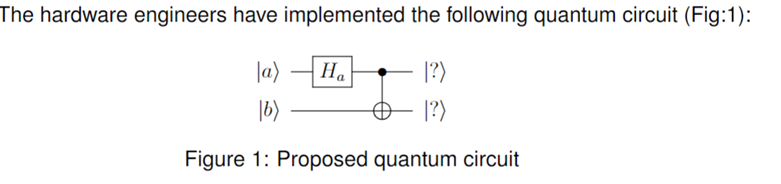

The hardware engineers have implemented the following quantum circuit (Fig:1): H. la) 16) |?) o |?) Figure 1: Proposed quantum circuit
Compute all the possible outcomes of the circuit for the four possible input values: |ab) = {00), [10), 101), (11)}. Hint: it is helpful to write down the state of the qubits after every operation.
