Please ASAP..... I will Rate and Like you. Course: Acquisition & Microcontrollers in Biomedical Engineering

[answerhappygod]

Please ASAP..... I will Rate and Like you.
Course: Acquisition & Microcontrollers in Biomedical
Engineering

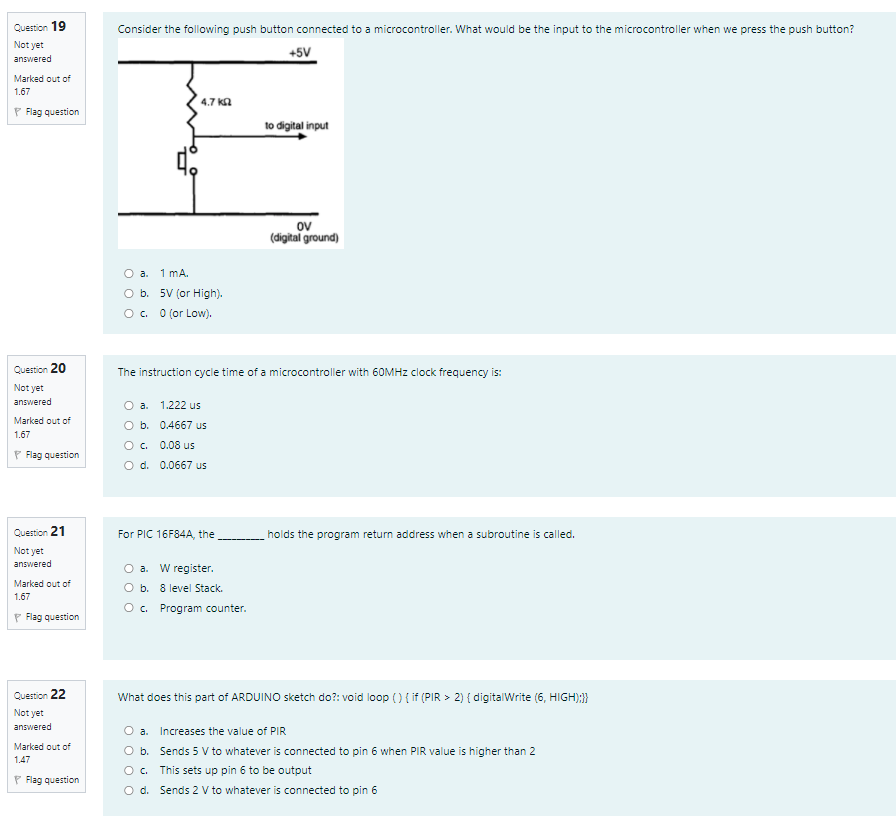

Please Asap I Will Rate And Like You Course Acquisition Microcontrollers In Biomedical Engineering 1 (46.19 KiB) Viewed 65 times

Question 19 Not yet answered Consider the following push button connected to a microcontroller. What would be the input to the microcontroller when we press the push button? +5V Marked out of 1.67 4.7 ΚΩ Flag question to digital input ov (digital ground) O a. 1 mA. Ob. 5V (or High). OC O (or Low). Question 20 The instruction cycle time of a microcontroller with 60MHz clock frequency is: Not yet answered Marked out of 1.67 O a. 1.222 us O b. 0.4667 Us OC. 0.08 us Flag question O d. 0.0667 us Question 21 For PIC 16F84A, the holds the program return address when a subroutine is called. a Not yet answered Marked out of 1.67 O a. W register. O b. 8 level Stack Oc Program counter P Flag question Question 22 What does this part of ARDUINO sketch do?: void loop() { if (PIR > 2) { digitalWrite 6, HIGH);}} Not yet answered Marked out of 1.47 a. Increases the value of PIR O b. Sends 5 V to whatever is connected to pin 6 when PIR value is higher than 2 Oc. This sets up pin 6 to be output O d. Sends 2 V to whatever is connected to pin 6 Flag question
