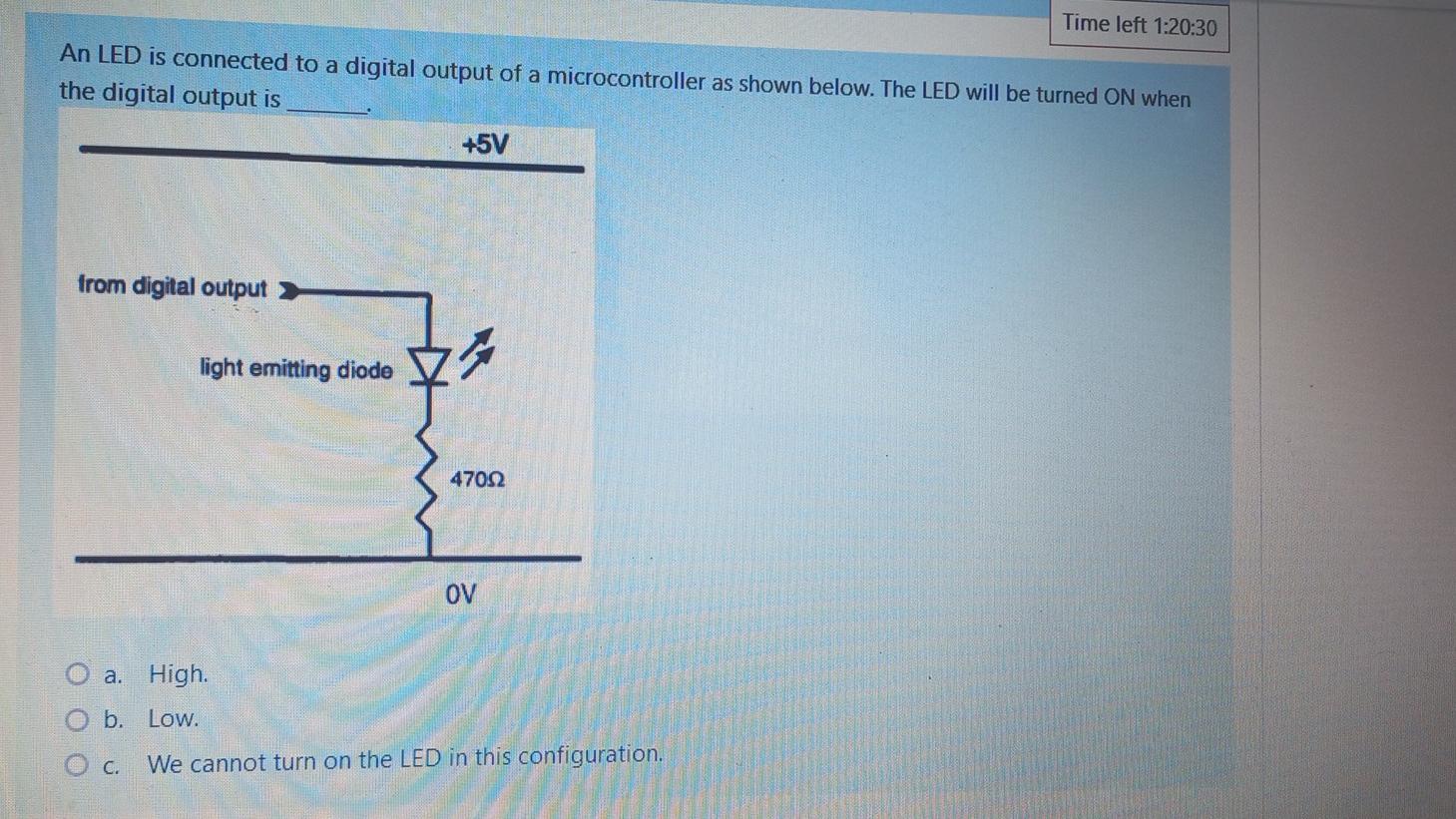

Time left 1:20:30 An LED is connected to a digital output of a microcontroller as shown below. The LED will be turned ON when the digital output is +5V from digital output > light emitting diode 47092 OV ㅎ O a. High. O b. Low. O c. We cannot turn on the LED in this configuration.
In Arduino, to write to a digital output pin: O a. digitalRead (pin) O b. pinMode(pin, OUTPUT) O c. digitalWrite(pin, Value ) O d. pin = HIGH (or pin = LOW) The binary-weighted-input DAC is a variation of a op-amp circuit O a. Non-inverting summer. O b. Inverting amplifier. O c. Inverting summer. O d. Non-inverting amplifier.
