Time left 1:22:11 According to the LED characteristics shown below: The Blue LED is to be connected to a 10 volts DC pow

Post by answerhappygod »

Time Left 1 22 11 According To The Led Characteristics Shown Below The Blue Led Is To Be Connected To A 10 Volts Dc Pow 1
Time Left 1 22 11 According To The Led Characteristics Shown Below The Blue Led Is To Be Connected To A 10 Volts Dc Pow 1 (189.28 KiB) Viewed 59 times

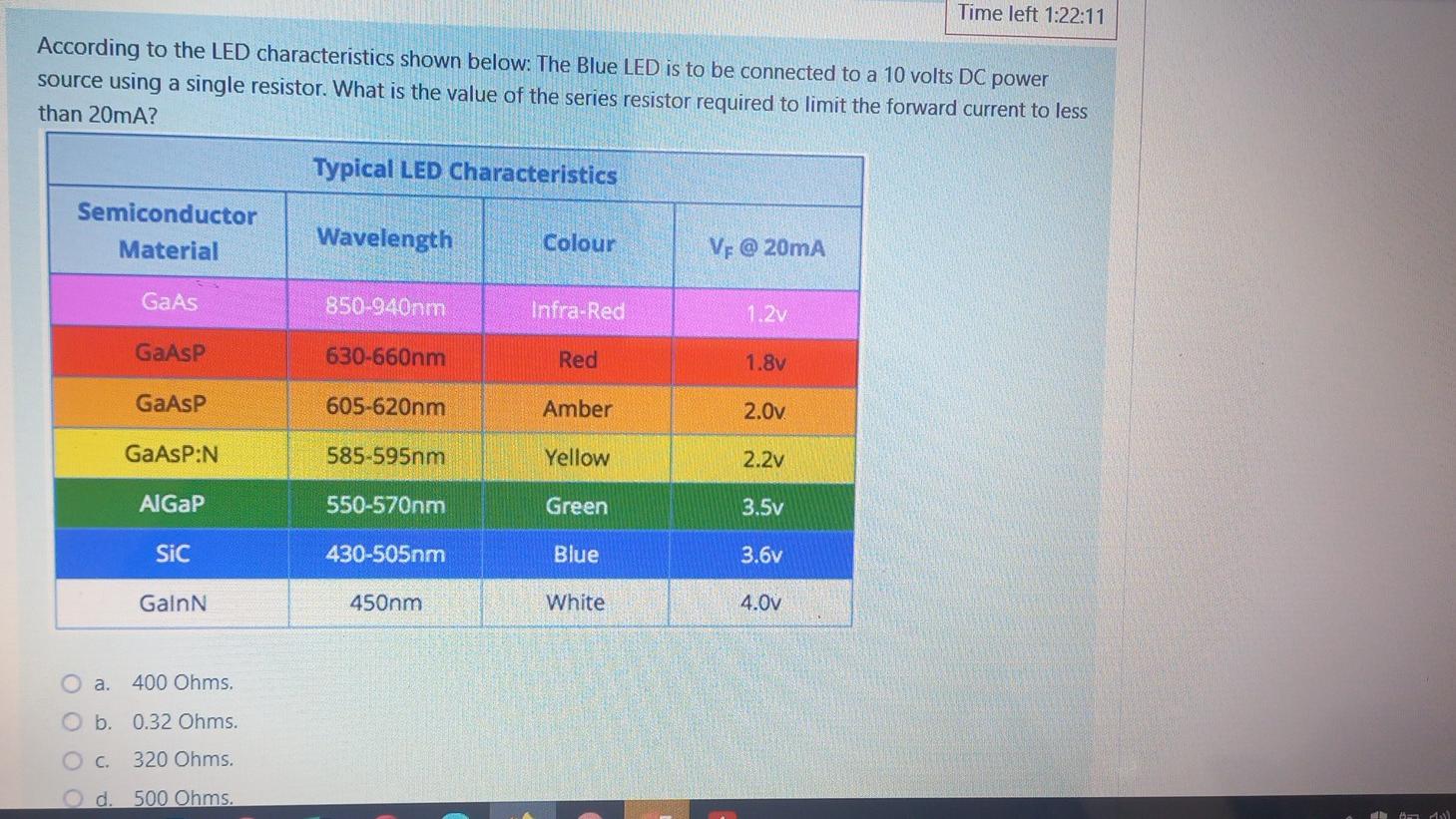

Time left 1:22:11 According to the LED characteristics shown below: The Blue LED is to be connected to a 10 volts DC power source using a single resistor. What is the value of the series resistor required to limit the forward current to less than 20mA? Typical LED Characteristics Semiconductor Material Wavelength Colour VE @ 20mA Gaas 850-940nm Infra-Red 1.24 GaAsP 630-660nm Red 1.8V GaAsP 605-620nm Amber 2.0V GaASP:N 585-595nm Yellow 2.2v AIGaP 550-570nm Green 3.5v SIC 430-505nm Blue 3.6V Gains 450nm White 4.0V O a. 400 Ohms. b. 0.32 Ohms. c. 320 Ohms. d. 500 Ohms. the do
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
