4. Auno (a) (6%) Please reduce the following state graph to a minimum number of states 010 0/0 27 OVO 1/0 0/0 OVO 1/0 1/

Post by answerhappygod »

4 Auno A 6 Please Reduce The Following State Graph To A Minimum Number Of States 010 0 0 27 Ovo 1 0 0 0 Ovo 1 0 1 1
4 Auno A 6 Please Reduce The Following State Graph To A Minimum Number Of States 010 0 0 27 Ovo 1 0 0 0 Ovo 1 0 1 1 (273.13 KiB) Viewed 68 times

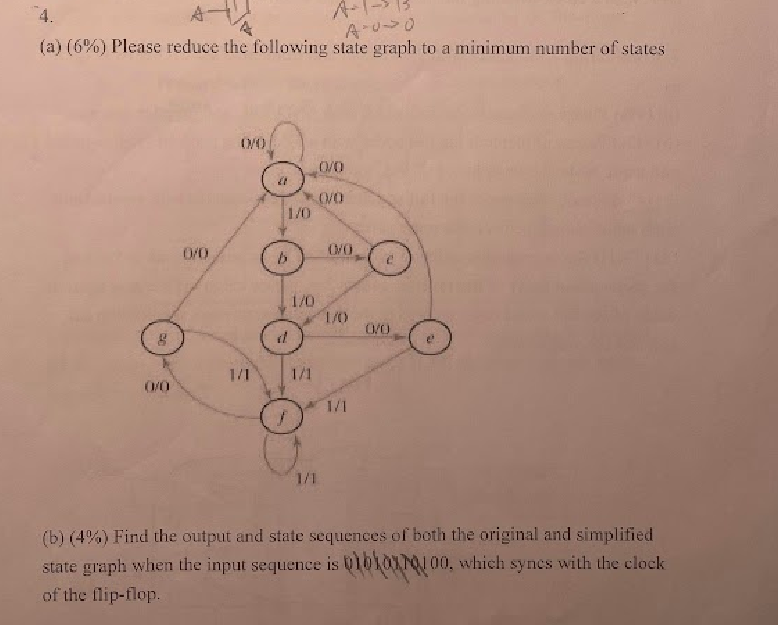

4. Auno (a) (6%) Please reduce the following state graph to a minimum number of states 010 0/0 27 OVO 1/0 0/0 OVO 1/0 1/0 0/0 1/1 1/1 070 1/1 1/1 (b) (4%) Find the output and state sequences of both the original and simplified state graph when the input sequence is bloo00, which synes with the clock of the flip-flop
