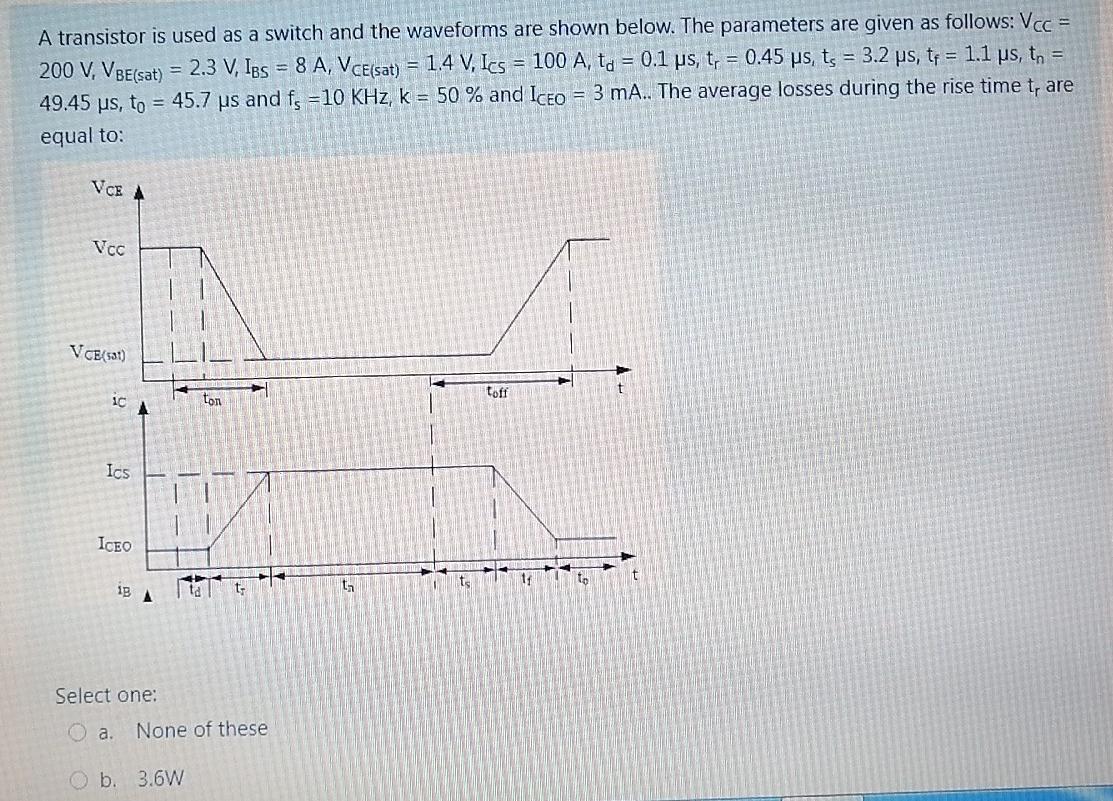

A transistor is used as a switch and the waveforms are shown below. The parameters are given as follows: Vcc = 200 V, V BE(sat) = 2.3 V, IBS = 8 A, VCE(sat) = 1.4 V, Les = 100 A, td = 0.1 us, tp = 0.45 us, ts = 3.2 us, tp = 1.1 us, th = 49.45 us, to = 45.7 us and fs = 10 KHz, k = 50 % and Iceo = 3 mA.. The average losses during the rise time t, are equal to: VCE A Vcc V CE{sat) toff 10 ton Ics ICEO th ts 11 to 1g tat: Select one: O a. None of these b. 3.6W

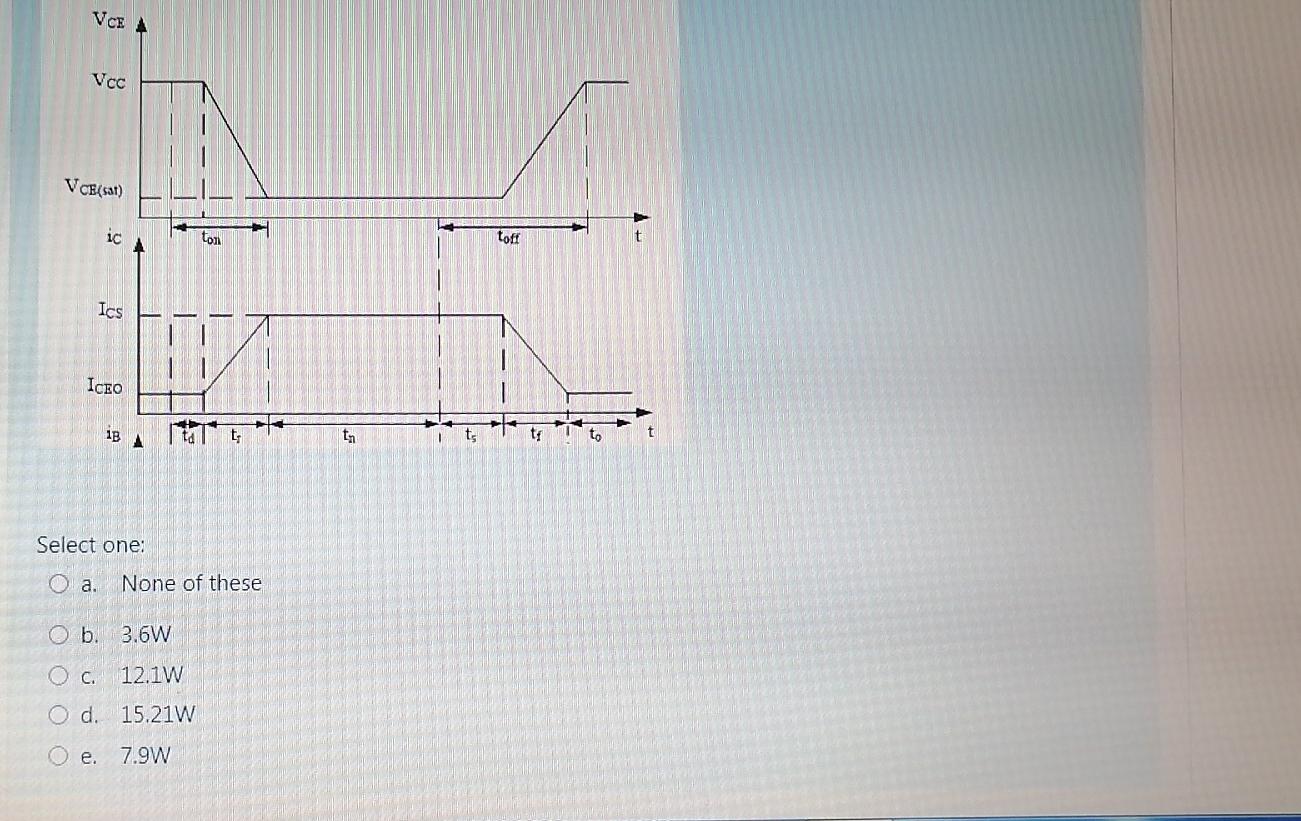

VCE Vcc VCE(sat) ic ton toff t Ics ICEO 1B 12 Ital A ti ts โท ti t to Select one: O a. None of these O b. 3.6W O C. 12.1w O d. 15.21W O e. 7.9W
