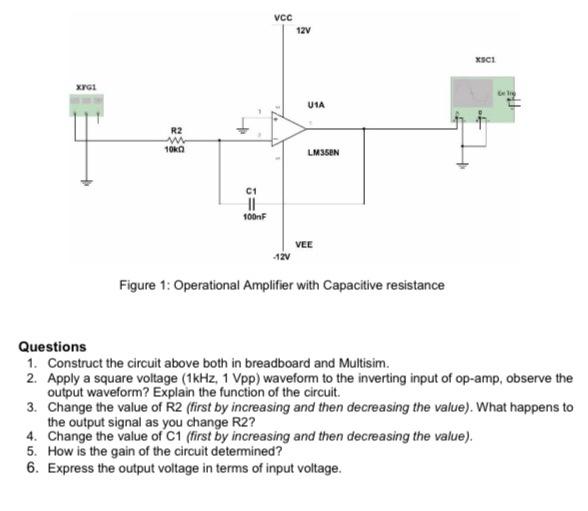

VCC 12V XSCI XIGI U1A + R2 w 1020 LMSSEN 아 C1 11 100nF VEE -12V Figure 1: Operational Amplifier with Capacitive resistance Questions 1. Construct the circuit above both in breadboard and Multisim. 2. Apply a square voltage (1kHz, 1 Vpp) waveform to the inverting input of op-amp, observe the output waveform? Explain the function of the circuit 3. Change the value of R2 (first by increasing and then decreasing the value). What happens to the output signal as you change R2? 4. Change the value of C1 (first by increasing and then decreasing the value). 5. How is the gain of the circuit determined? 6. Express the output voltage in terms of input voltage.
