MID B2 Q1:/ Show the contents in hexadecimal of registers PC, AR, DR, AC, IR and SC of the basic computer when an instru

[answerhappygod]

Mid B2 Q1 Show The Contents In Hexadecimal Of Registers Pc Ar Dr Ac Ir And Sc Of The Basic Computer When An Instru 1 (74.24 KiB) Viewed 70 times

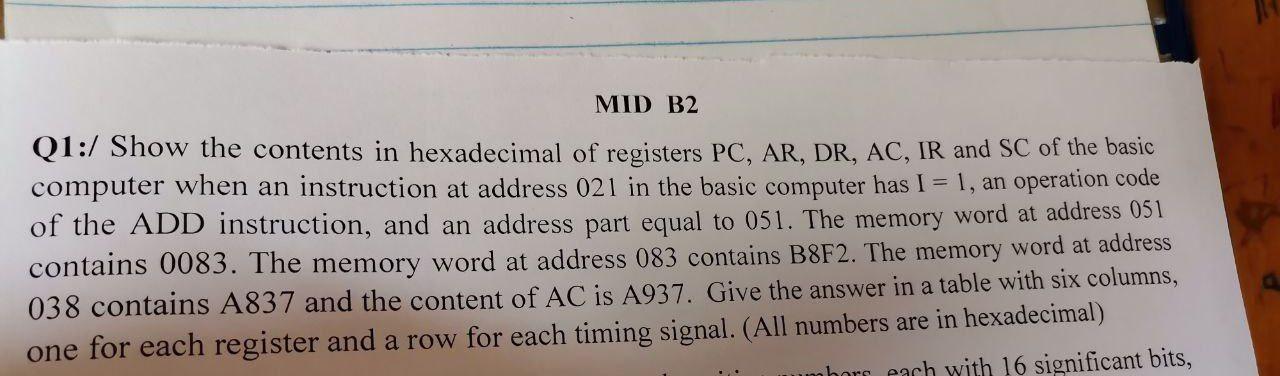

MID B2 Q1:/ Show the contents in hexadecimal of registers PC, AR, DR, AC, IR and SC of the basic computer when an instruction at address 021 in the basic computer has I = 1, an operation code of the ADD instruction, and an address part equal to 051. The memory word at address 051 contains 0083. The memory word at address 083 contains B8F2. The memory word at address 038 contains A837 and the content of AC is A937. Give the answer in a table with six columns, one for each register and a row for each timing signal. (All numbers are in hexadecimal) mumhore each with 16 significant bits,
