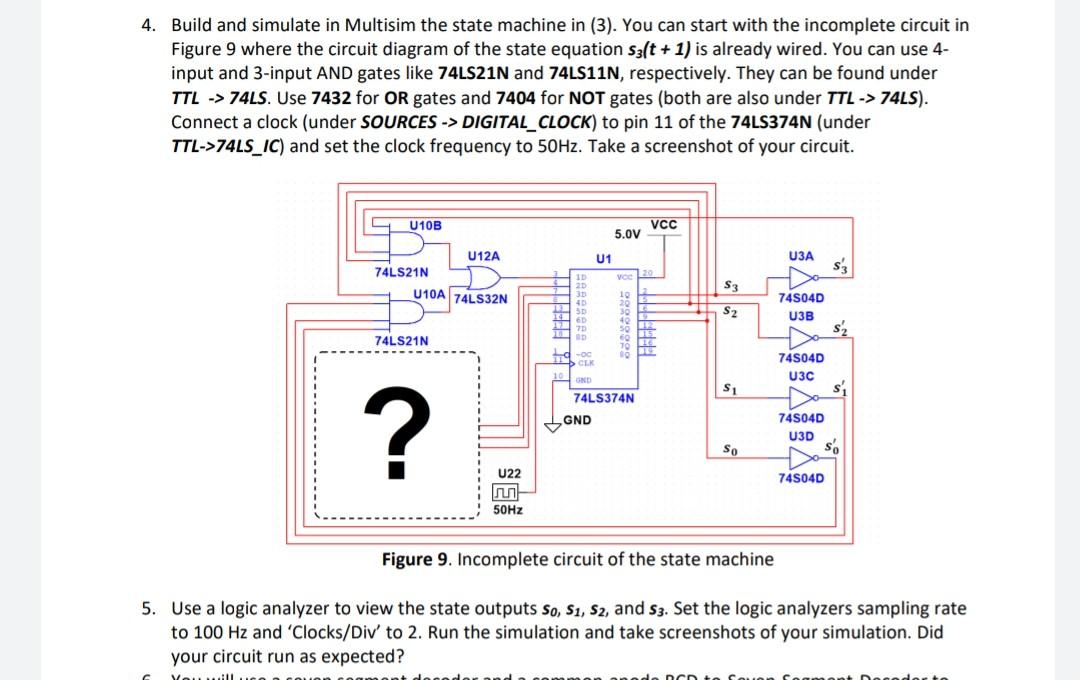

4. Build and simulate in Multisim the state machine in (3). You can start with the incomplete circuit in Figure 9 where the circuit diagram of the state equation s3(t + 1) is already wired. You can use 4- input and 3-input AND gates like 74LS21N and 74LS11N, respectively. They can be found under TTL -> 74LS. Use 7432 for OR gates and 7404 for NOT gates (both are also under TTL -> 74LS). Connect a clock (under SOURCES -> DIGITAL_CLOCK) to pin 11 of the 74LS374N (under TTL->74LS_IC) and set the clock frequency to 50Hz. Take a screenshot of your circuit. U10B VCC 5.0V U12A U1 ОЗА 74LS21N s's ye 20 S3 U10A 74LS32N 10 1D 20 3D 30 3D 14. 1270 S2 30 49 15 10 H LO 74504D U3B sa 74LS21N -OC •CLK 74504D U3C GND S1 2 74LS374N GND 74504D U3D so So U22 74504D 50Hz Figure 9. Incomplete circuit of the state machine 5. Use a logic analyzer to view the state outputs so, S1, S2, and S3. Set the logic analyzers sampling rate to 100 Hz and 'Clocks/Div' to 2. Run the simulation and take screenshots of your simulation. Did your circuit run as expected? non ta San
