QUESTION 1: Rms value of the source voltage and impedance of the load in a 3 phase balanced circuit given below are Vab,

[answerhappygod]

Question 1 Rms Value Of The Source Voltage And Impedance Of The Load In A 3 Phase Balanced Circuit Given Below Are Vab 1 (53.9 KiB) Viewed 65 times

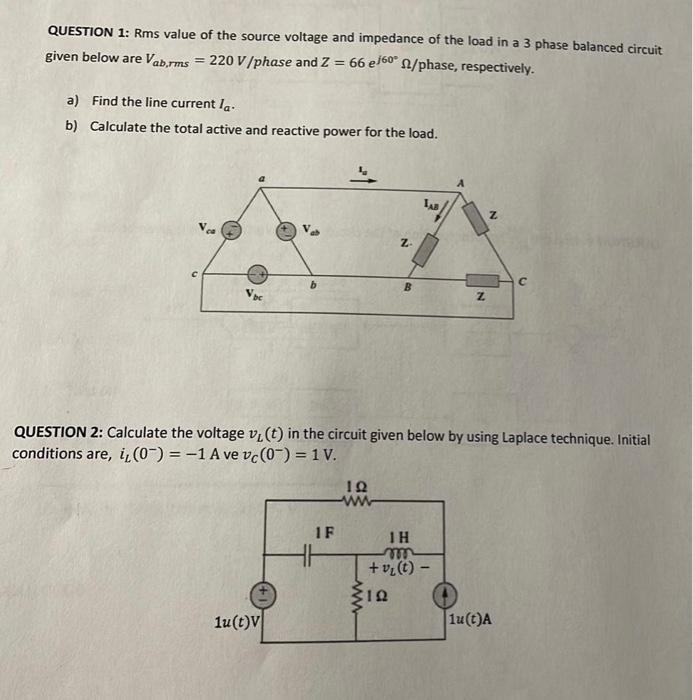

QUESTION 1: Rms value of the source voltage and impedance of the load in a 3 phase balanced circuit given below are Vab,rms = 220 V/phase and Z = 66 e360° /phase, respectively. = a) Find the line current la b) Calculate the total active and reactive power for the load. مدا Z Z C с B Voc Z QUESTION 2: Calculate the voltage v.(t) in the circuit given below conditions are, i (0) = -1 A ve vc(0-) = 1 V. using Laplace technique. Initial ΤΩ w 1F ІН mm +vtc) - 102 1u(t)v l()A
