1- Find the equivalent resistance in the given circuit. 2- If V0= 6V in the circuit in the figure, what would the IS val

Post by answerhappygod »

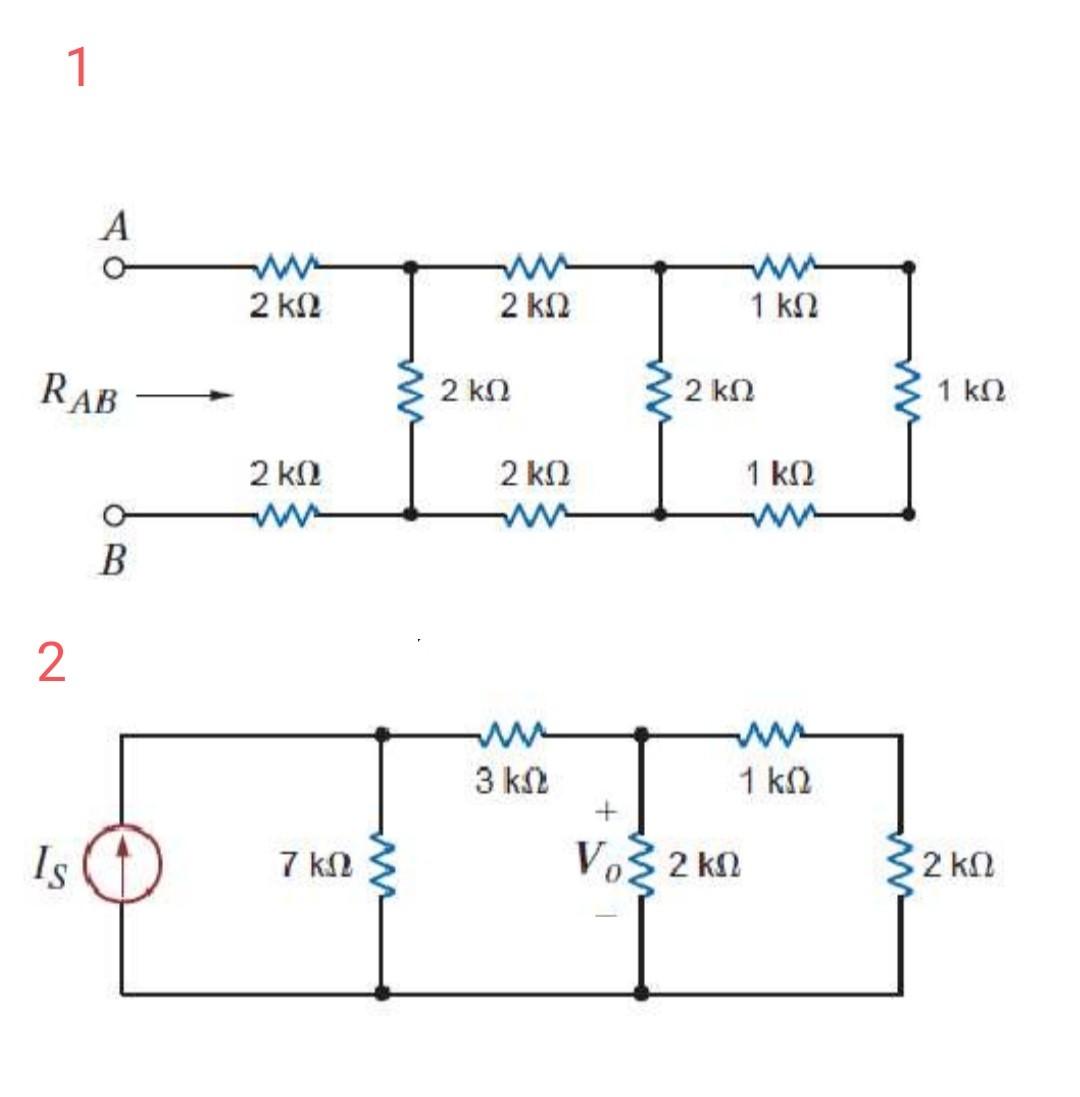

1- Find the equivalent resistance in the given circuit.
2- If V0= 6V in the circuit in the figure, what would the IS value be?
1 Find The Equivalent Resistance In The Given Circuit 2 If V0 6v In The Circuit In The Figure What Would The Is Val 1
1 Find The Equivalent Resistance In The Given Circuit 2 If V0 6v In The Circuit In The Figure What Would The Is Val 1 (52.27 KiB) Viewed 89 times
1 A WW 2 ΚΩ w 2 ΚΩ 1 ΚΩ RAB 2 ΚΩ 2 kΩ 1 ΚΩ 1 1 ΚΩ 2 ΚΩ W 2 ΚΩ -Λ- B 2. -- 3 kΩ w 1 ΚΩ + IS 7 ΚΩ VO32 ΚΩ 32 ΚΩ
