2. Solve for IB, IC, VB, VE, Vc, and VCE. Also, construct a dc load line showing the values of Ic(sat), VCE(off), ICQ, a

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
correctanswer
Posts: 43759
Joined: Sat Aug 07, 2021 7:38 am

2. Solve for IB, IC, VB, VE, Vc, and VCE. Also, construct a dc load line showing the values of Ic(sat), VCE(off), ICQ, a

Post by correctanswer »

2 Solve For Ib Ic Vb Ve Vc And Vce Also Construct A Dc Load Line Showing The Values Of Ic Sat Vce Off Icq A 1
2 Solve For Ib Ic Vb Ve Vc And Vce Also Construct A Dc Load Line Showing The Values Of Ic Sat Vce Off Icq A 1 (20.45 KiB) Viewed 41 times

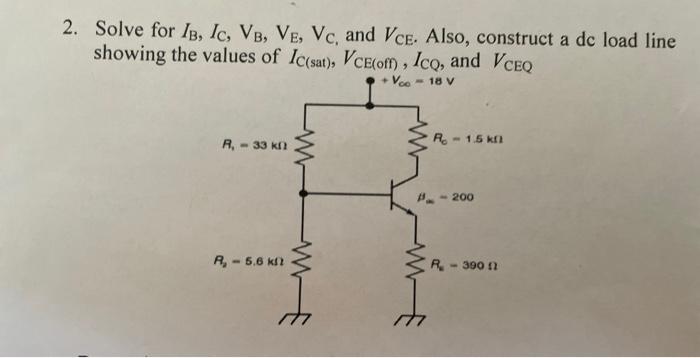

2. Solve for IB, IC, VB, VE, Vc, and VCE. Also, construct a dc load line showing the values of Ic(sat), VCE(off), ICQ, and VCEQ + Voo - 18 V R - 1.5 k R₁ - 33 kl R, - 5.6 k www #-200 R-390 11
