Bright Synchronizing Method Generator synchronization is the process of matching parameters such as voltage, frequency,

[answerhappygod]

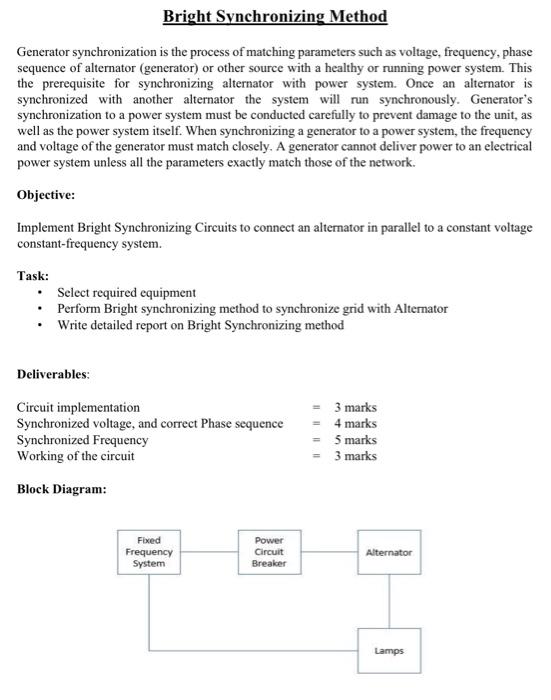

Bright Synchronizing Method Generator Synchronization Is The Process Of Matching Parameters Such As Voltage Frequency 1 (46.54 KiB) Viewed 292 times

Bright Synchronizing Method Generator synchronization is the process of matching parameters such as voltage, frequency, phase sequence of alternator (generator) or other source with a healthy or running power system. This the prerequisite for synchronizing alternator with power system. Once an alternator is synchronized with another alternator the system will run synchronously. Generator's synchronization to a power system must be conducted carefully to prevent damage to the unit, as well as the power system itself. When synchronizing a generator to a power system, the frequency and voltage of the generator must match closely. A generator cannot deliver power to an electrical power system unless all the parameters exactly match those of the network. Objective: Implement Bright Synchronizing Circuits to connect an alternator in parallel to a constant voltage constant-frequency system. Task: • Select required equipment • Perform Bright synchronizing method to synchronize grid with Alternator Write detailed report on Bright Synchronizing method Deliverables: Circuit implementation = 3 marks Synchronized voltage, and correct Phase sequence 4 marks Synchronized Frequency 5 marks Working of the circuit = 3 marks Block Diagram: Power Circuit Breaker Fixed Frequency System Alternator Lamps
