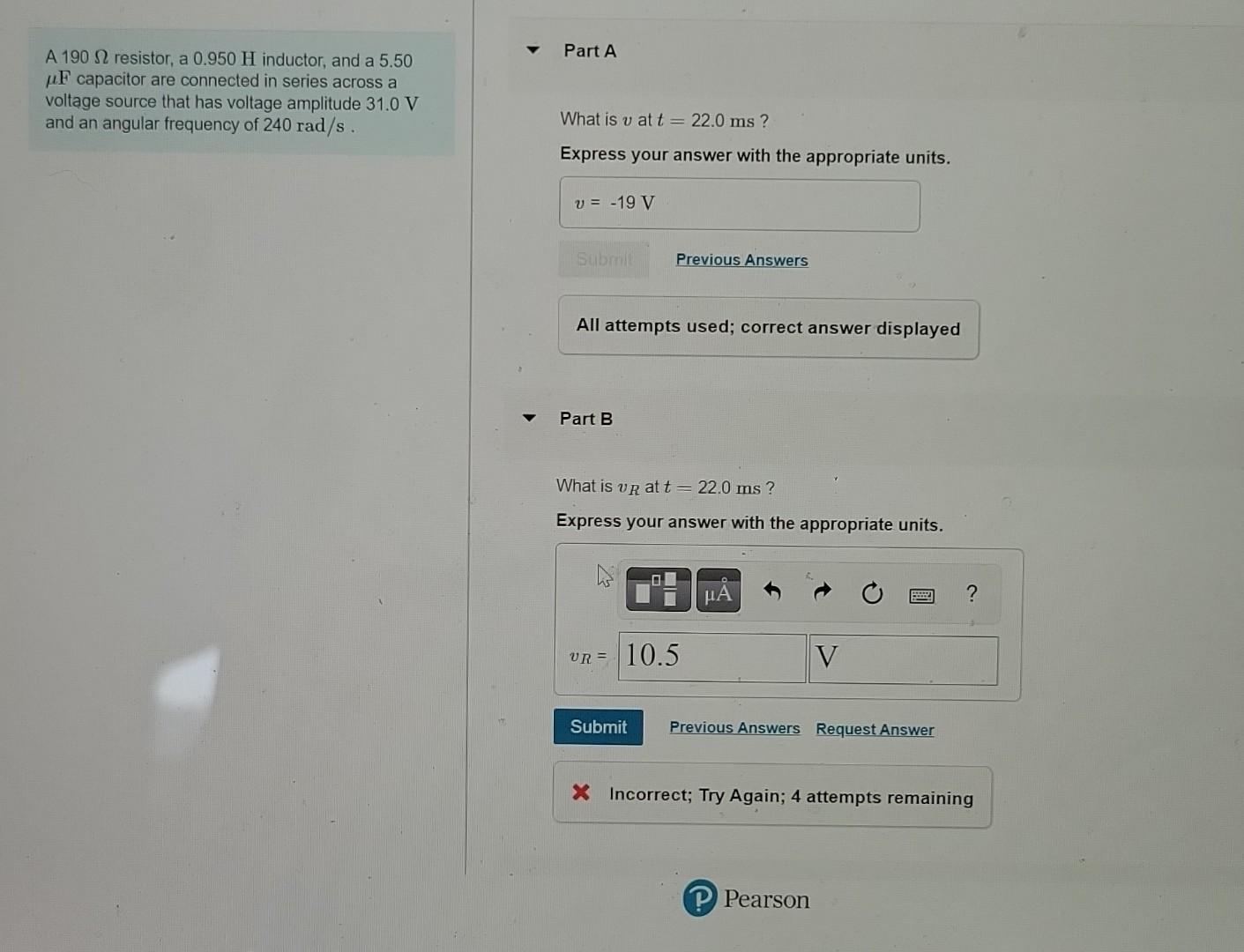

A 190 resistor, a 0.950 H inductor, and a 5.50 uF capacitor are connected in series across a voltage source that has voltage amplitude 31.0 V and an angular frequency of 240 rad/s. Part A What is u at t = 22.0 ms? Express your answer with the appropriate units. v = -19 V Submit Previous Answers All attempts used; correct answer displayed Part B What is up at t = 22.0 ms? Express your answer with the appropriate units. HÅ ? UR = 10.5 V Submit Previous Answers Request Answer X Incorrect; Try Again; 4 attempts remaining P Pearson

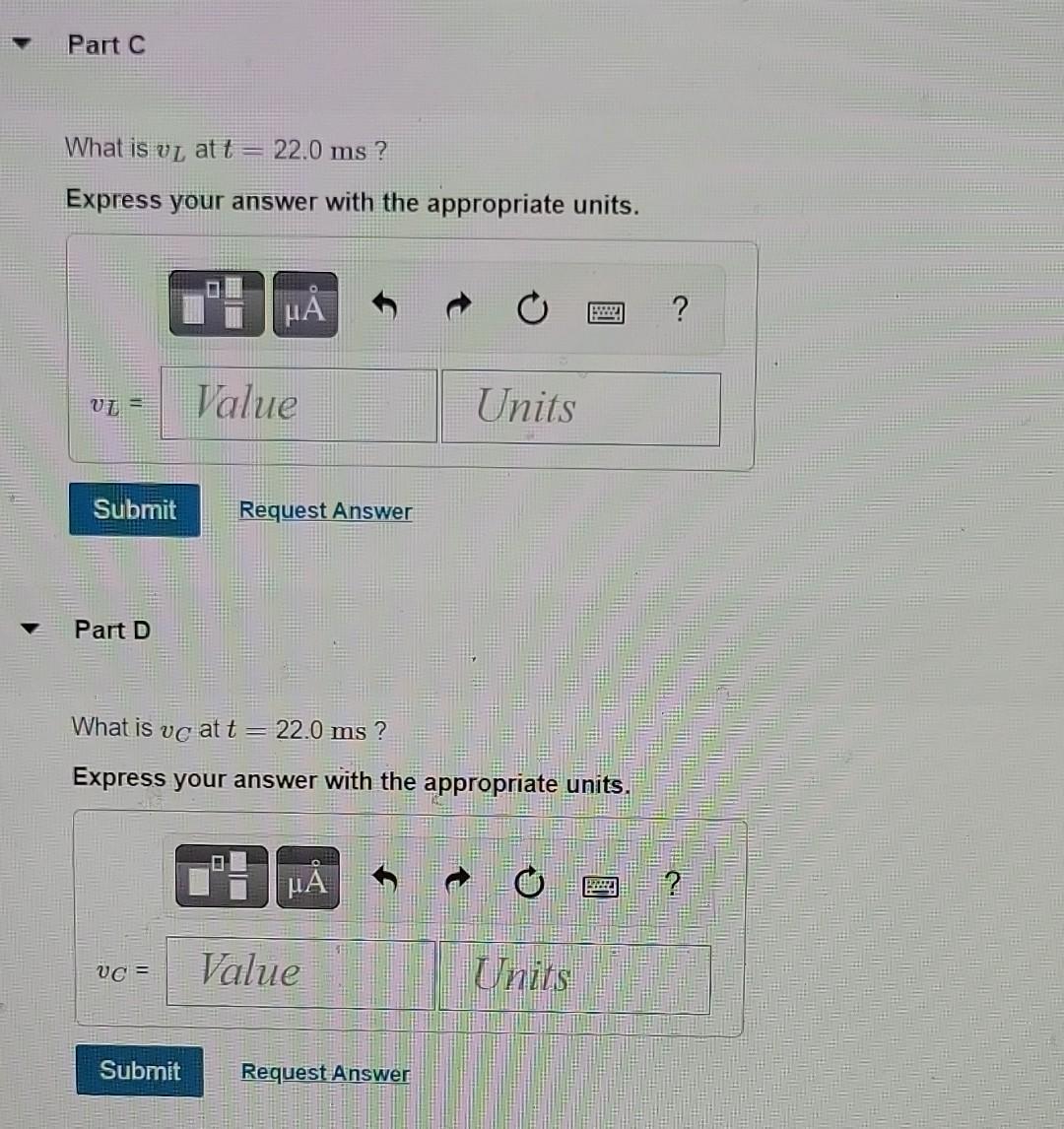

Part C What is vL at t = 22.0 ms? Express your answer with the appropriate units. HÅ ? Value UL Units Submit Request Answer Part D What is uc at t = 22.0 ms? Express your answer with the appropriate units. BLA 2222 UC= Units Submit Value Request Answer

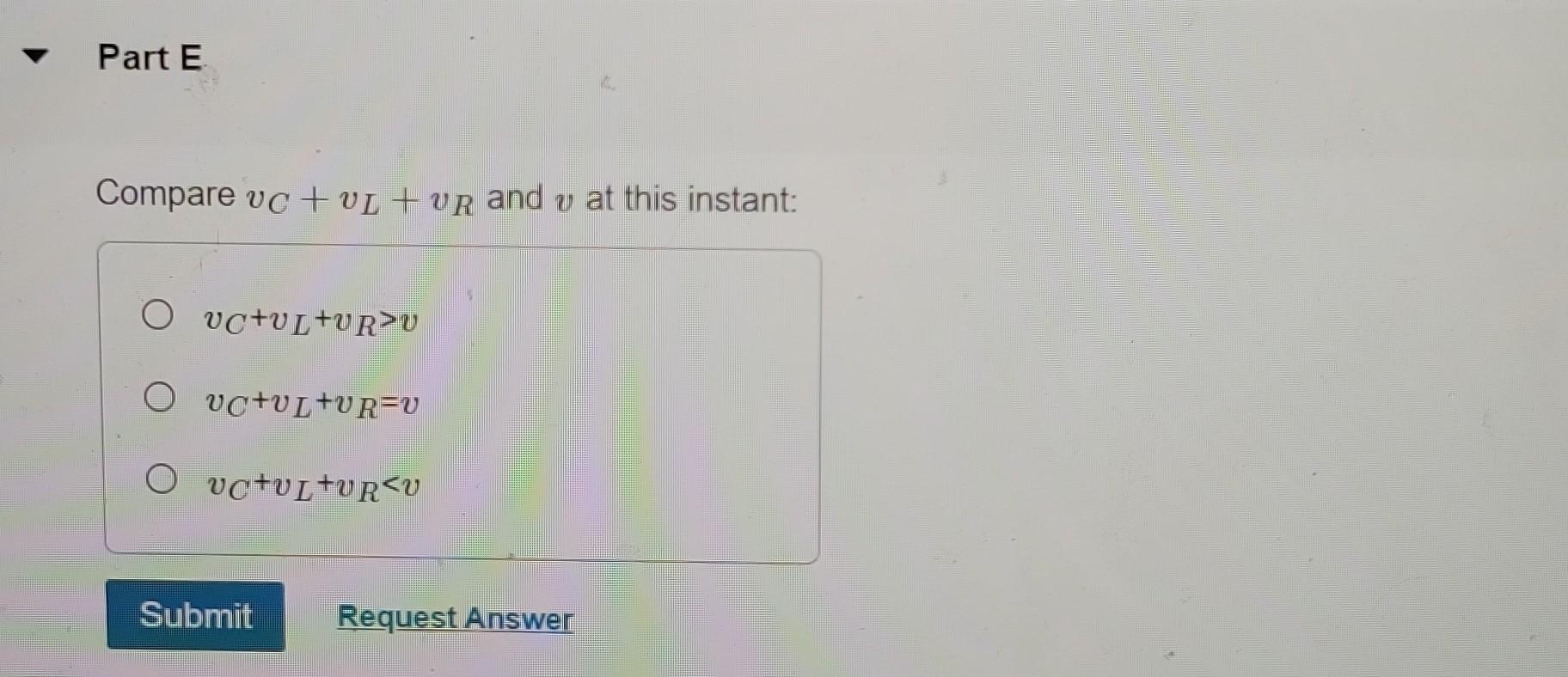

Part E Compare vc+VI+ VR and v at this instant: Ovc+UL+UR>V Ovc+UL+UR=V O vc+UL+UR<V Submit Request Answer
