A pnp transistor is biased in common-emitted mode, with idealized output characteristics as shown below. a. Estimate the

Post by answerhappygod »

A Pnp Transistor Is Biased In Common Emitted Mode With Idealized Output Characteristics As Shown Below A Estimate The 1
A Pnp Transistor Is Biased In Common Emitted Mode With Idealized Output Characteristics As Shown Below A Estimate The 1 (30.11 KiB) Viewed 373 times

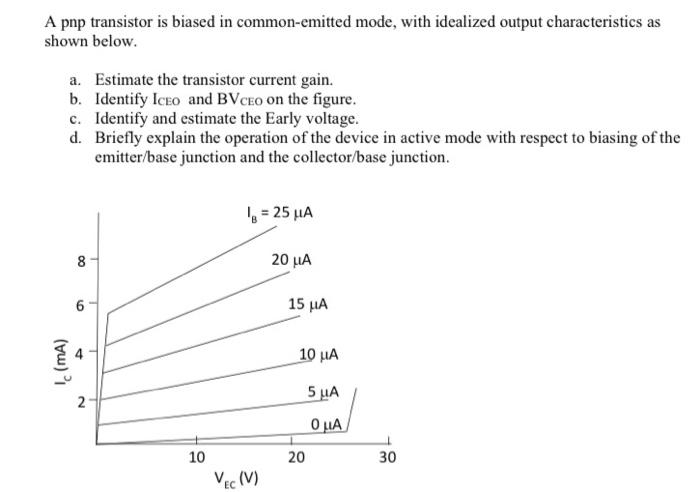

A pnp transistor is biased in common-emitted mode, with idealized output characteristics as shown below. a. Estimate the transistor current gain. b. Identify ICEO and BVCEO on the figure. c. Identify and estimate the Early voltage. d. Briefly explain the operation of the device in active mode with respect to biasing of the emitter/base junction and the collector/base junction. ₁ = 25 μA 8 20 μα 6 Ic (mA) 2 10 VEC (V) 15 ΜΑ 10 ΜΑ 5 μA 0 μA 20 30
