Using the GRAFCET methodology, make the AWL program for
the following sequence of pistons. You should start the sequence
with a start button, each state should have a timer.
A+, B+, B-, C+, C-, A-
Using The Grafcet Methodology Make The Awl Program For The Following Sequence Of Pistons You Should Start The Sequence 1 (1.52 MiB) Viewed 386 times

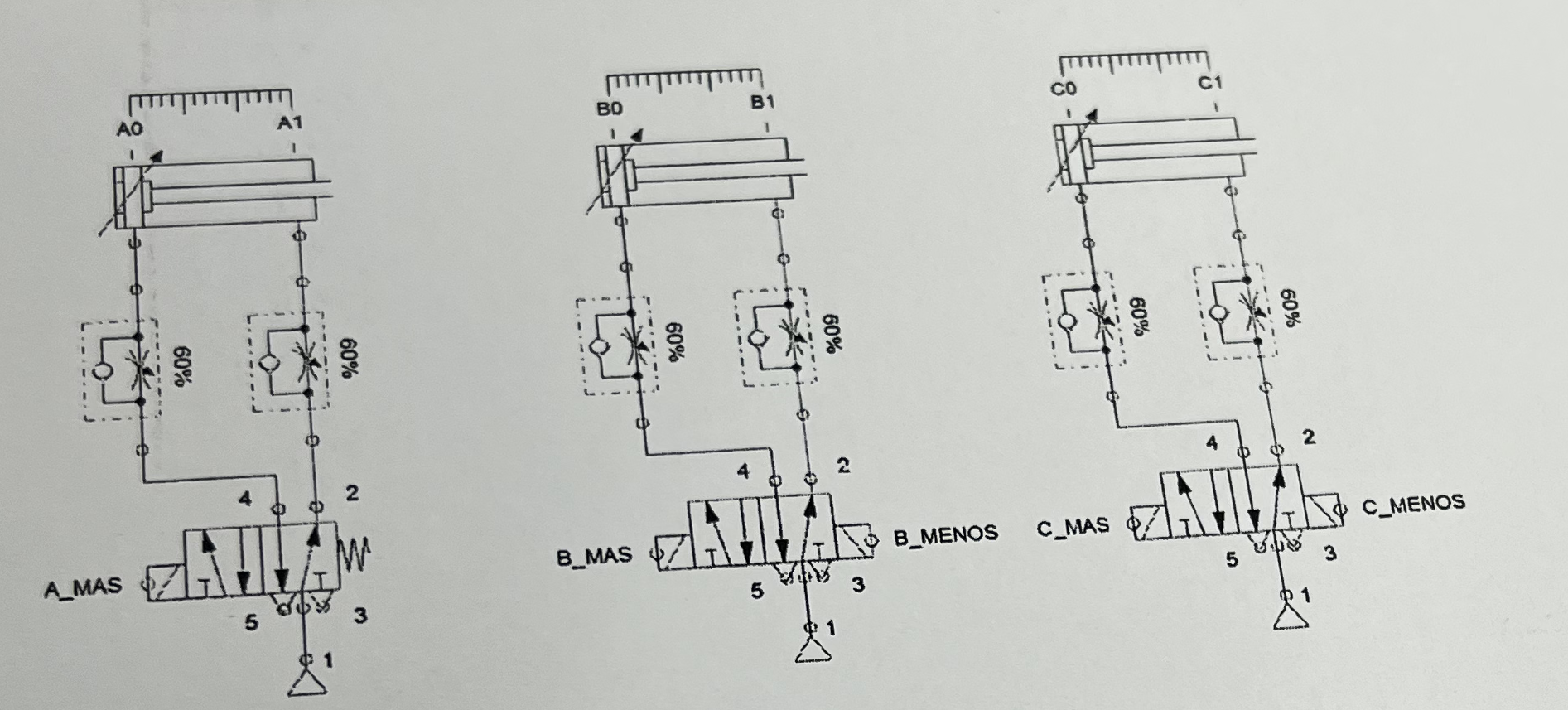

AO A_MAS %09 4 5 A1 60% 60% 2 ВО 3 B_MAS B1 5 60% 3 B_MENOS CO C_MAS 60% C1 5 60% GPS 2 1 3 C_MENOS
