The system in the figure is in equilibrium. A concrete block of mass 203 kg hangs from the end of the uniform strut of m

Post by answerhappygod »

The System In The Figure Is In Equilibrium A Concrete Block Of Mass 203 Kg Hangs From The End Of The Uniform Strut Of M 1
The System In The Figure Is In Equilibrium A Concrete Block Of Mass 203 Kg Hangs From The End Of The Uniform Strut Of M 1 (20.74 KiB) Viewed 30 times

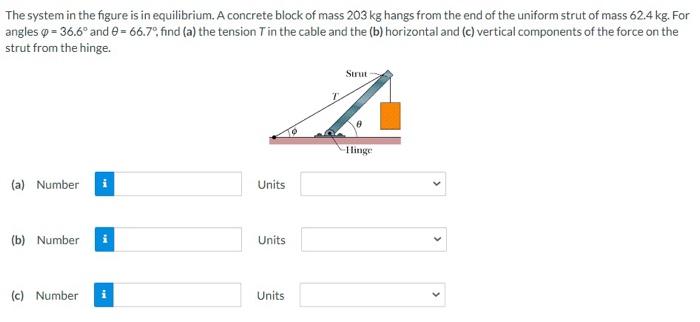

The system in the figure is in equilibrium. A concrete block of mass 203 kg hangs from the end of the uniform strut of mass 62.4 kg. For angles = 36.6° and 9 = 66.7°, find (a) the tension T in the cable and the (b) horizontal and (c) vertical components of the force on the strut from the hinge. Strut 8 -Hinge (a) Number Units (b) Number Units (c) Number Units
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
