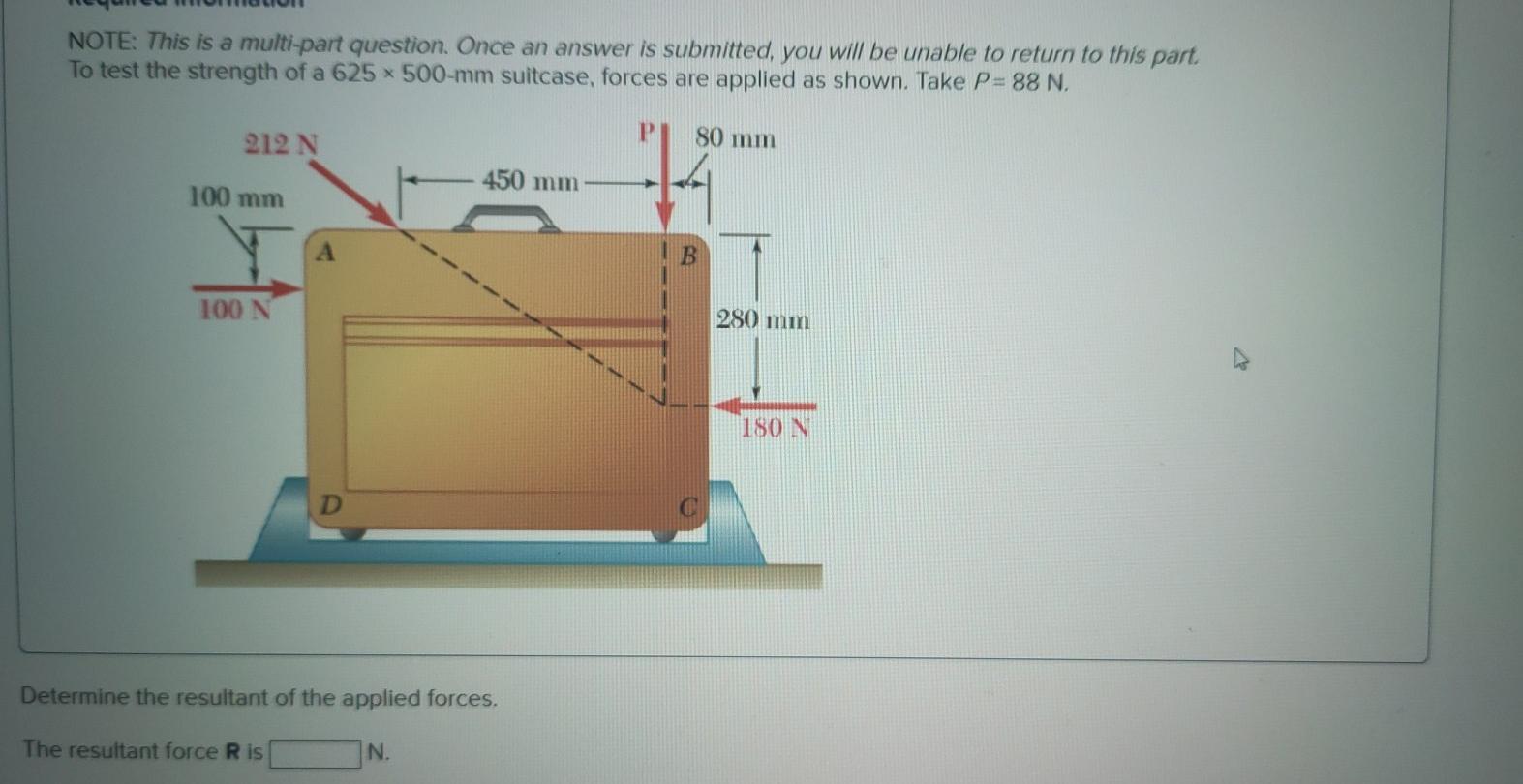

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. To test the strength of a 625 x 500-mm suitcase, forces are applied as shown. Take P = 88 N. 80 mm 212 N 450 mm 100 mm 100 N D Determine the resultant of the applied forces. The resultant force R is N. B 280 mm 180 N

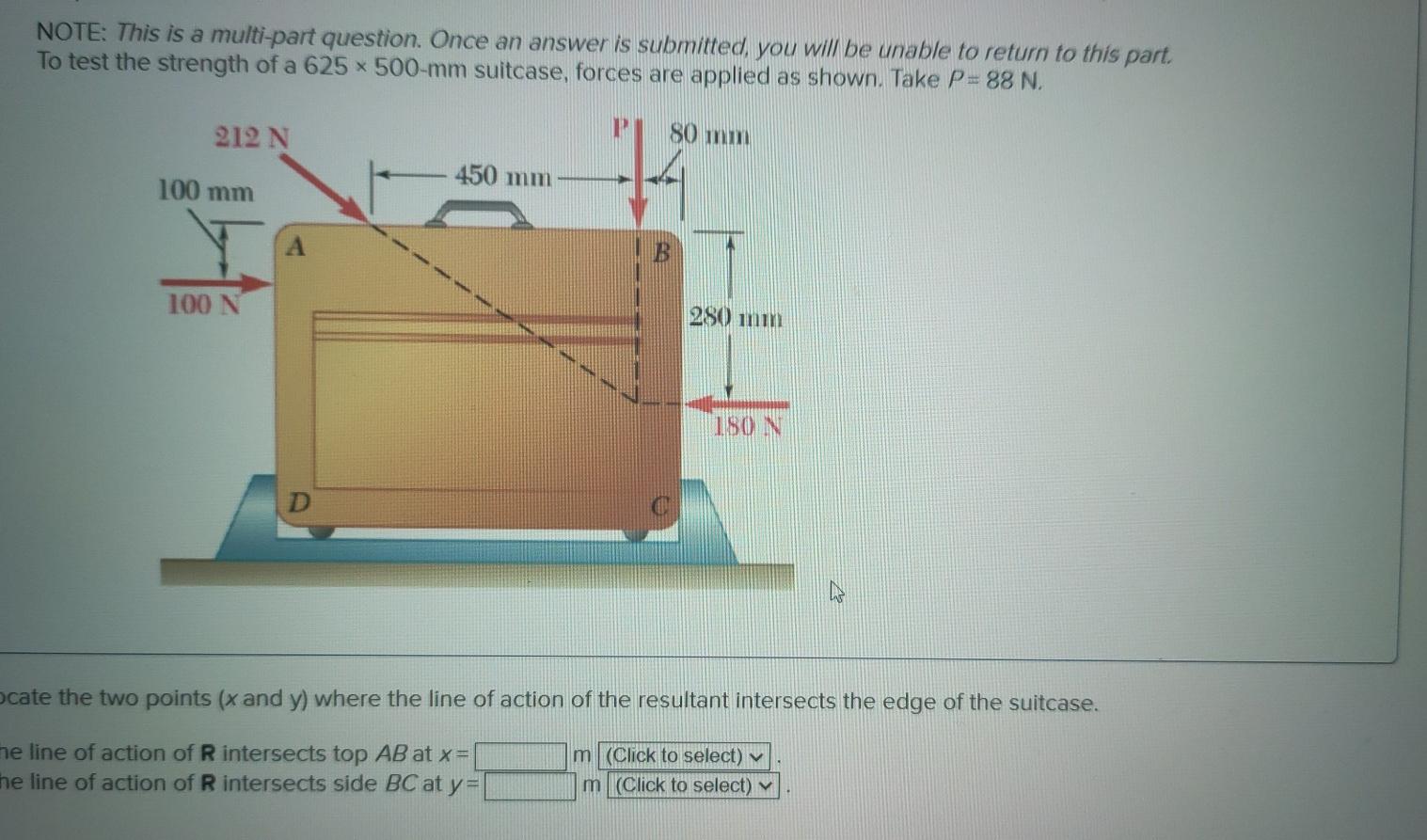

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. To test the strength of a 625 x 500-mm suitcase, forces are applied as shown. Take P= 88 N. 80 mm 212 N 450 mm 100 mm 100 N B 280 mm 180 N D ocate the two points (x and y) where the line of action of the resultant intersects the edge of the suitcase. m (Click to select) ✓ me line of action of R intersects top AB at x = he line of action of R intersects side BC at y = m (Click to select)
