A 1,300-N uniform boom at - 65.5° to the horizontal is supported by a cable at an angle = 24.5 to the horizontal as show

[answerhappygod]

A 1 300 N Uniform Boom At 65 5 To The Horizontal Is Supported By A Cable At An Angle 24 5 To The Horizontal As Show 1 (27.53 KiB) Viewed 49 times

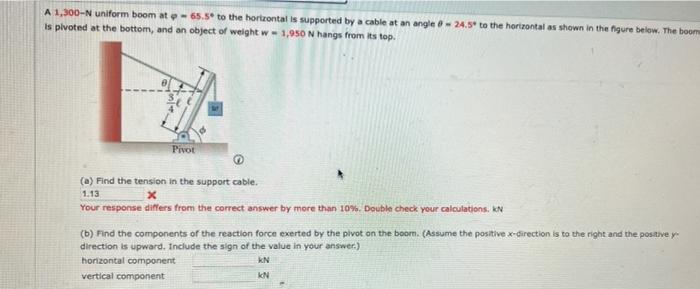

A 1,300-N uniform boom at - 65.5° to the horizontal is supported by a cable at an angle = 24.5 to the horizontal as shown in the figure below. The boom is pivoted at the bottom, and an object of weight w 1,950 N hangs from its top. Pivot O (a) Find the tension in the support cable. 1.13 x Your response differs from the correct answer by more than 10%. Double check your calculations. N (b) Find the components of the reaction force exerted by the pivot on the boom. (Assume the positive x-direction is to the right and the positive y direction is upward. Include the sign of the value in your answer.) horizontal component KN vertical component KN
