height y as a function of horizontal position x
as shown in the diagram. If the skateboarder starts from 𝑥=17 m
with a speed of 7.7 m/s to the left, what position do they reach
before coming to a stop and reversing direction? Assume that
friction is negligible and that, once they start rolling, the
skateboarder doesn’t push off from the ground to pick up additional
speed.

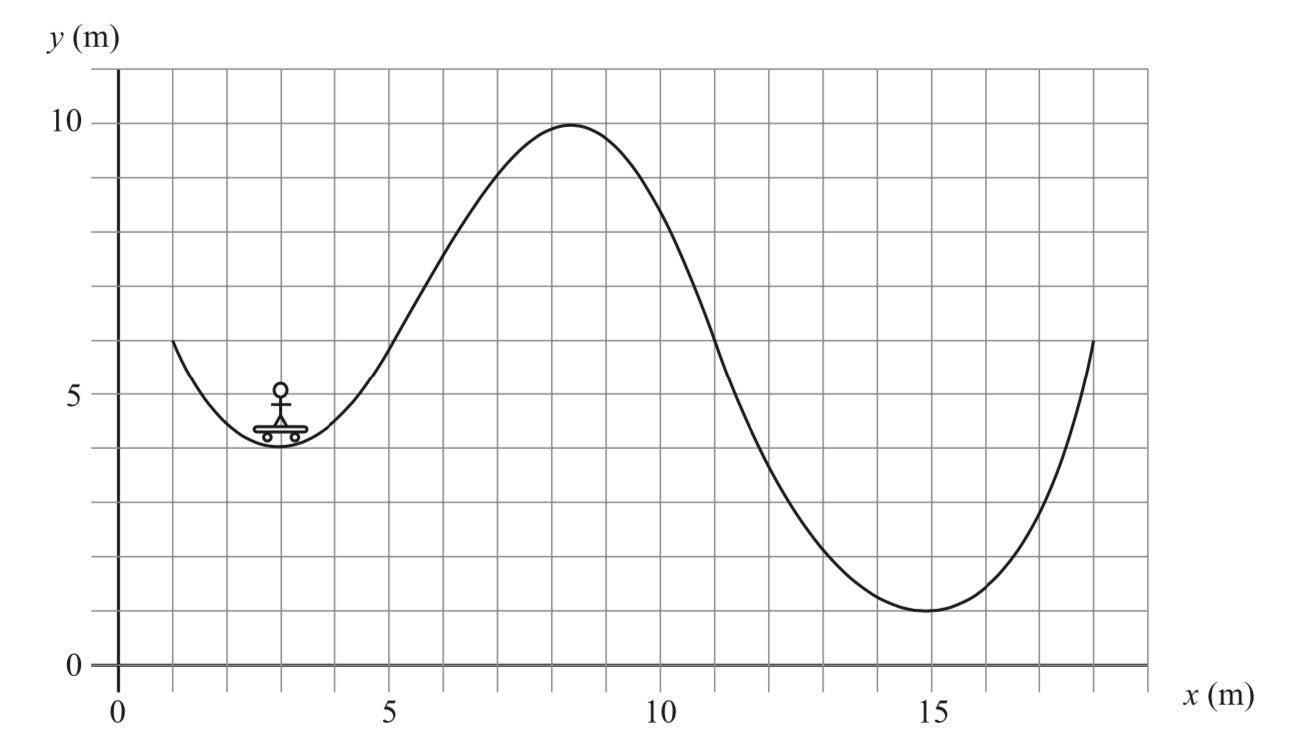

- A 60 Kg Skateboarder Travels On A Hilly Landscape With Height Y As A Function Of Horizontal Position X As Shown In The D 1 (69.88 KiB) Viewed 33 times
far to the right do they get before reversing direction again?
b. Suppose the same skateboarder again starts moving to the left
from 𝑥=17 m. If they have exactly the minimum speed needed to make
it over the hill between 𝑥=8 m and 𝑥=9 m, what is their speed when
they reach 𝑥=3 m?
c. If the skateboarder started the trip over the hill from 𝑥=17
m and jumped off the board at 𝑥=1 m, where between 17 m and 1 m is
their speed maximum, and what is the speed at that point?
y(m) 10 5 5 10 15 x (m)
