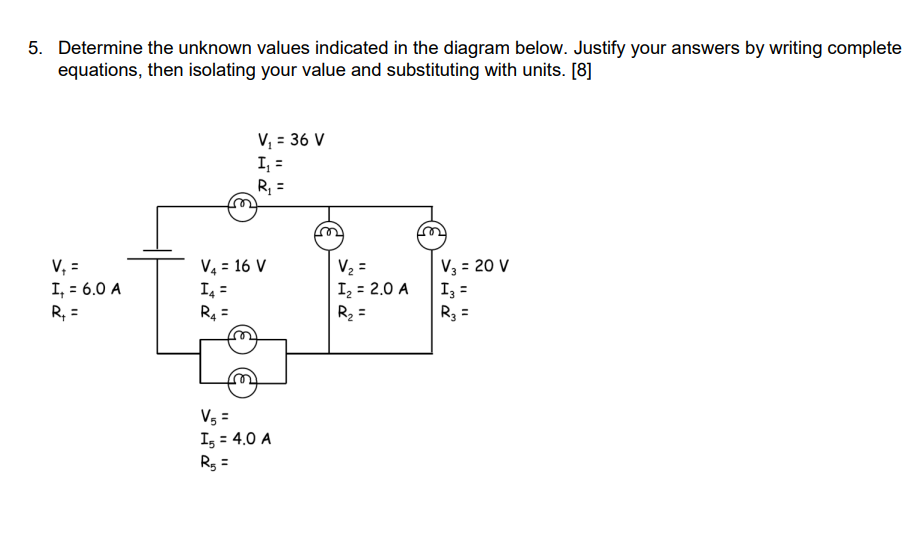

5. Determine the unknown values indicated in the diagram below. Justify your answers by writing complete equations, then
-
