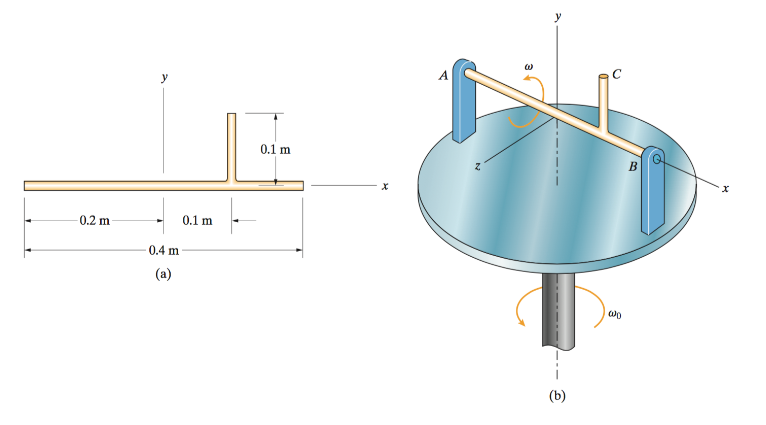

The object in the figure is supported by bearings at A and B as
shown in figure b). The horizontal circular disk is supported by a
vertical shaft that rotates with constant angular speed ω0 = 6.2
rad/s. The horizontal bar rotates with a constant angular speed ω =
5.5 rad/s. At the instant shown, what is the magnitude of the
acceleration (in m/s2) relative to a reference frame fixed to the
Earth of endpoint C of the vertical bar?
The Object In The Figure Is Supported By Bearings At A And B As Shown In Figure B The Horizontal Circular Disk Is Supp 1 (81.02 KiB) Viewed 36 times
-0.2 m 0.4 m (a) 0.1 m 0.1 m (b) B WO X
