Question 10 A 3-terminal component in an electrical network can be represented by either of the following oriented graph

[answerhappygod]

Question 10 A 3 Terminal Component In An Electrical Network Can Be Represented By Either Of The Following Oriented Graph 1 (52.35 KiB) Viewed 27 times

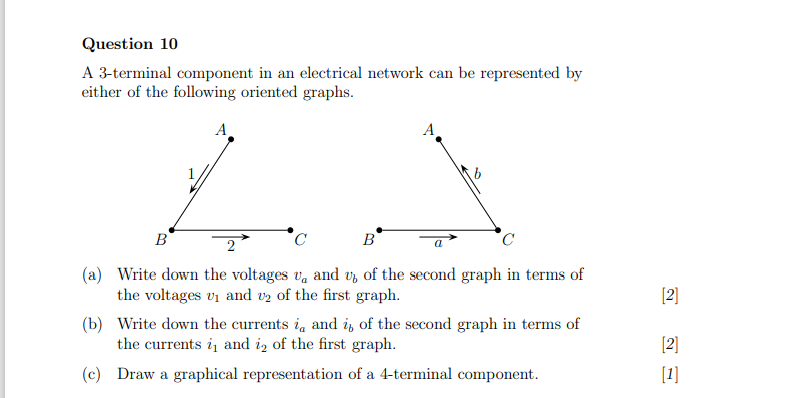

Question 10 A 3-terminal component in an electrical network can be represented by either of the following oriented graphs. A A B B с 2 a (a) Write down the voltages va and up of the second graph in terms of the voltages v₁ and 2 of the first graph. (b) Write down the currents i, and i, of the second graph in terms of the currents ₁ and 2 of the first graph. (c) Draw a graphical representation of a 4-terminal component. [2] [2] [1]
