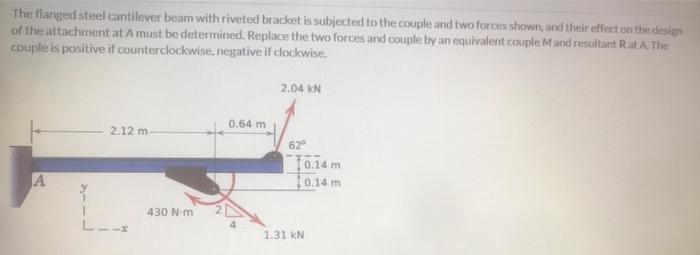

The flanged steel cantilever beam with riveted bracket is subjected to the couple and two forces shown, and their effect on the design of the attachment at A must be determined. Replace the two forces and couple by an equivalent couple Mand resultant Rat A. The couple is positive if counterclockwise, negative if clockwise. 2.04 kN 0.64 m 2.12 m- 62⁰ A L- 430 N-m 1.31 kN 0.14 m 0.14 m

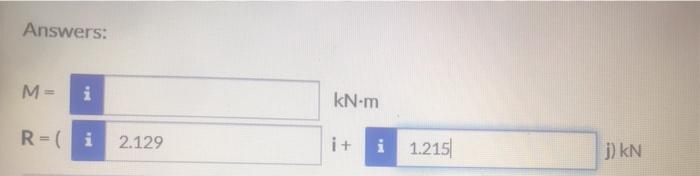

Answers: M = i R=(i 2.129 kN-m i+ i 1.215 j) KN
