marks) Consider the system shown in the following block diagram. i. Find a single closed-loop transfer function of the c

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

marks) Consider the system shown in the following block diagram. i. Find a single closed-loop transfer function of the c

Post by answerhappygod »

Marks Consider The System Shown In The Following Block Diagram I Find A Single Closed Loop Transfer Function Of The C 1
Marks Consider The System Shown In The Following Block Diagram I Find A Single Closed Loop Transfer Function Of The C 1 (440.22 KiB) Viewed 25 times

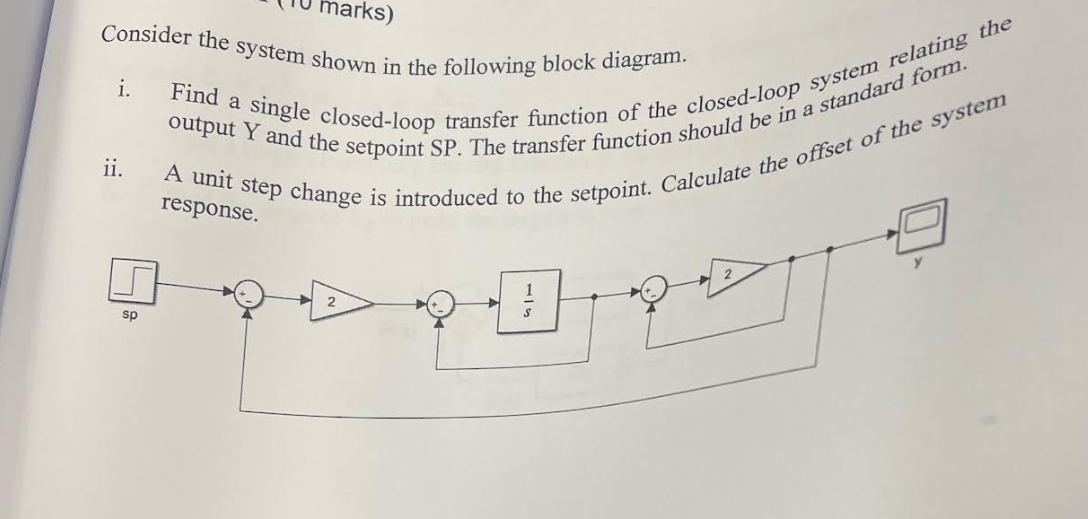

marks) Consider the system shown in the following block diagram. i. Find a single closed-loop transfer function of the closed-loop system relating the output Y and the setpoint SP. The transfer function should be in a standard form. A unit step change is introduced to the setpoint. Calculate the offset of the system ii. response. 3 sp
