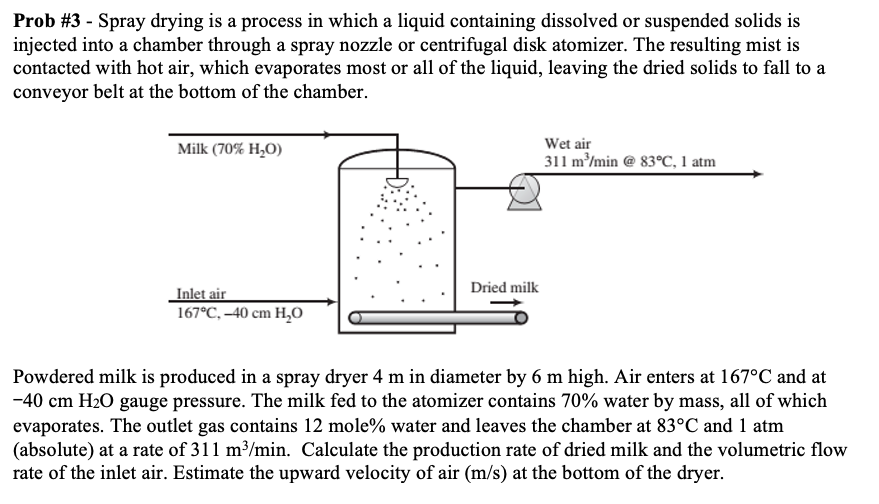

Prob #3 - Spray drying is a process in which a liquid containing dissolved or suspended solids is injected into a chamber through a spray nozzle or centrifugal disk atomizer. The resulting mist is contacted with hot air, which evaporates most or all of the liquid, leaving the dried solids to fall to a conveyor belt at the bottom of the chamber. Milk (70% H₂O) Wet air 311 m³/min @ 83°C, 1 atm Dried milk Inlet air 167°C, -40 cm H₂O Powdered milk is produced in a spray dryer 4 m in diameter by 6 m high. Air enters at 167°C and at -40 cm H₂0 gauge pressure. The milk fed to the atomizer contains 70% water by mass, all of which evaporates. The outlet gas contains 12 mole% water and leaves the chamber at 83°C and 1 atm (absolute) at a rate of 311 m³/min. Calculate the production rate of dried milk and the volumetric flow rate of the inlet air. Estimate the upward velocity of air (m/s) at the bottom of the dryer.
