Problem two (50 Points) Consider the system of two isothermal CSTR reactors in series. F CAO F CAI do F CA2 Reactor (1)

[answerhappygod]

Problem Two 50 Points Consider The System Of Two Isothermal Cstr Reactors In Series F Cao F Cai Do F Ca2 Reactor 1 1 (62.34 KiB) Viewed 33 times

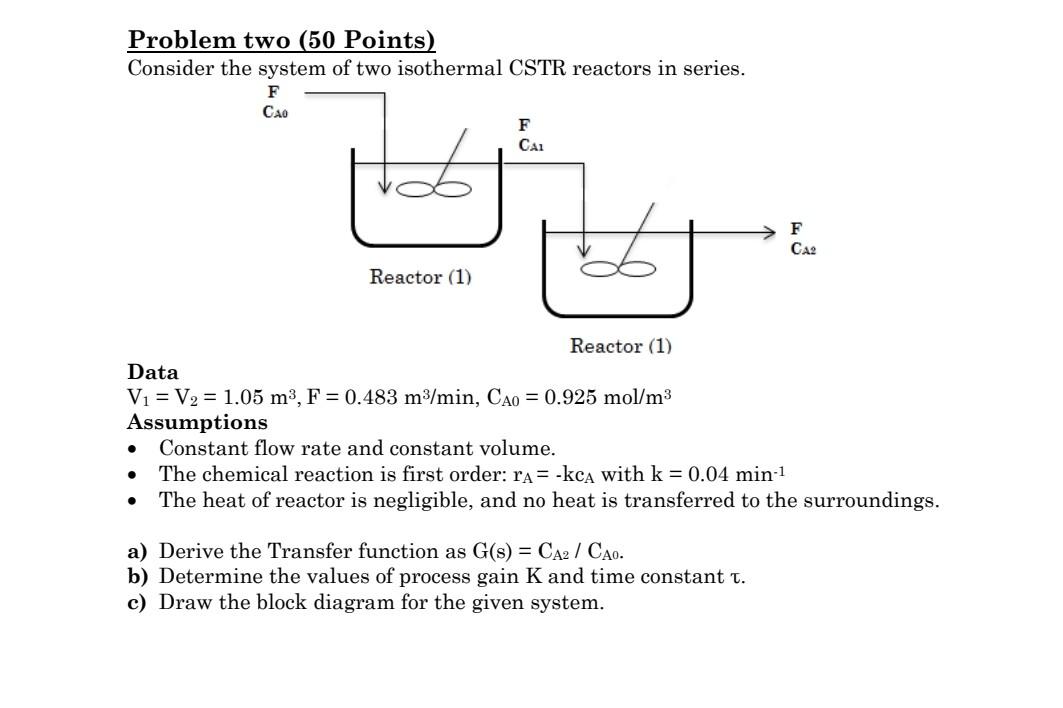

Problem two (50 Points) Consider the system of two isothermal CSTR reactors in series. F CAO F CAI do F CA2 Reactor (1) Reactor (1) Data V₁ V₂ = 1.05 m³, F = 0.483 m³/min, CAO = 0.925 mol/m³ Assumptions ● Constant flow rate and constant volume. The chemical reaction is first order: rA=-kCA with k = 0.04 min-¹ The heat of reactor is negligible, and no heat is transferred to the surroundings. a) Derive the Transfer function as G(s) = CA2 / CAO. b) Determine the values of process gain K and time constant t. c) Draw the block diagram for the given system.
