Q4. A turbine discharges 200 kg/h of saturated steam at 10 bar absolute. It is desired to generate steam at 250 °C and 1

[answerhappygod]

Q4 A Turbine Discharges 200 Kg H Of Saturated Steam At 10 Bar Absolute It Is Desired To Generate Steam At 250 C And 1 1 (154.14 KiB) Viewed 22 times

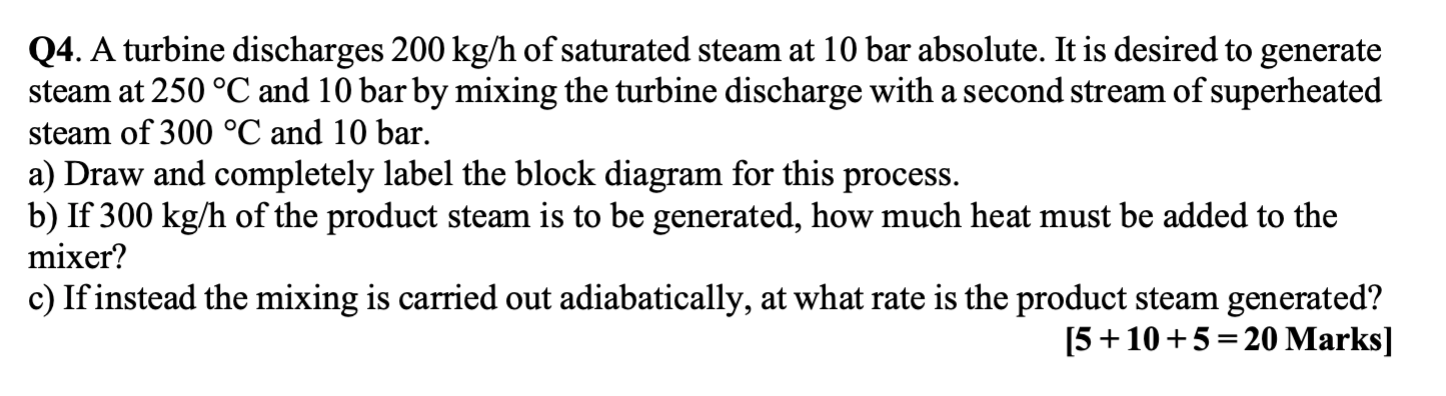

Q4. A turbine discharges 200 kg/h of saturated steam at 10 bar absolute. It is desired to generate steam at 250 °C and 10 bar by mixing the turbine discharge with a second stream of superheated steam of 300 °C and 10 bar. a) Draw and completely label the block diagram for this process. b) If 300 kg/h of the product steam is to be generated, how much heat must be added to the mixer? c) If instead the mixing is carried out adiabatically, at what rate is the product steam generated? [5+10+5=20 Marks]
