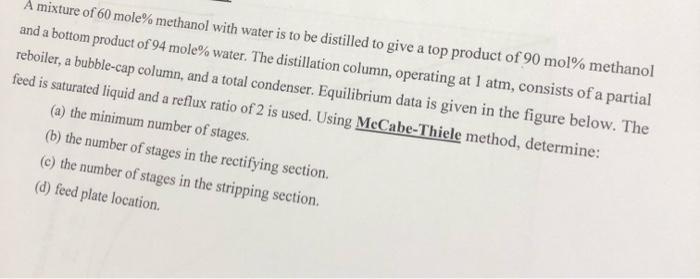

A mixture of 60 mole% methanol with water is to be distilled to give a top product of 90 mol% methanol and a bottom product of 94 mole % water. The distillation column, operating at 1 atm, consists of a partial reboiler, a bubble-cap column, and a total condenser. Equilibrium data is given in the figure below. The feed is saturated liquid and a reflux ratio of 2 is used. Using McCabe-Thiele method, determine: (a) the minimum number of stages. (b) the number of stages in the rectifying section. (c) the number of stages in the stripping section. (d) feed plate location.

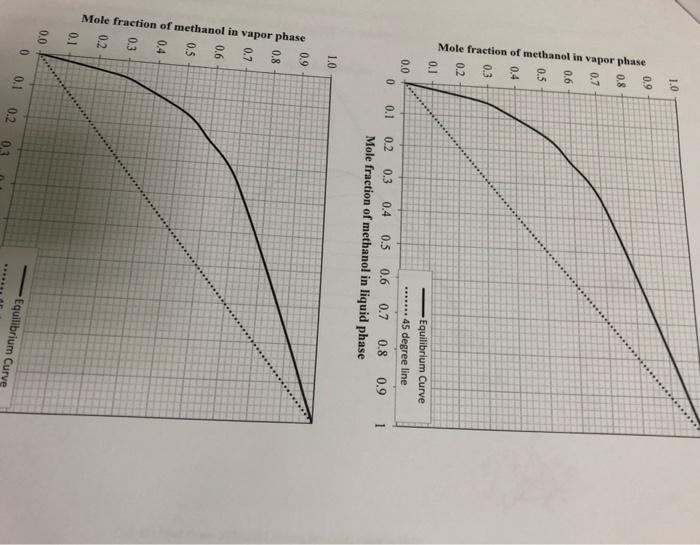

Mole fraction of methanol in vapor phase Mole fraction of methanol in vapor phase 1.0 0.9 0.8 0.7 0.6 0.5 in 0.4 0.3 0.2 0.1 0.0 1.0 0.9 0.8 0.7 0.0 0.6 0.5 0.4 0.2 0.1 0.3 0 .............................................................................................. 0.1 Equilibrium Curve 45 degree line 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 Mole fraction of methanol in liquid phase 0 0.1 0.2 0.3 Equilibrium Curve 1
