Sulfur dioxide is released into the air at a rate of 2kg/s from the top of a chimney 120m high. The plume initially rose

[answerhappygod]

Sulfur Dioxide Is Released Into The Air At A Rate Of 2kg S From The Top Of A Chimney 120m High The Plume Initially Rose 1 (158.69 KiB) Viewed 41 times

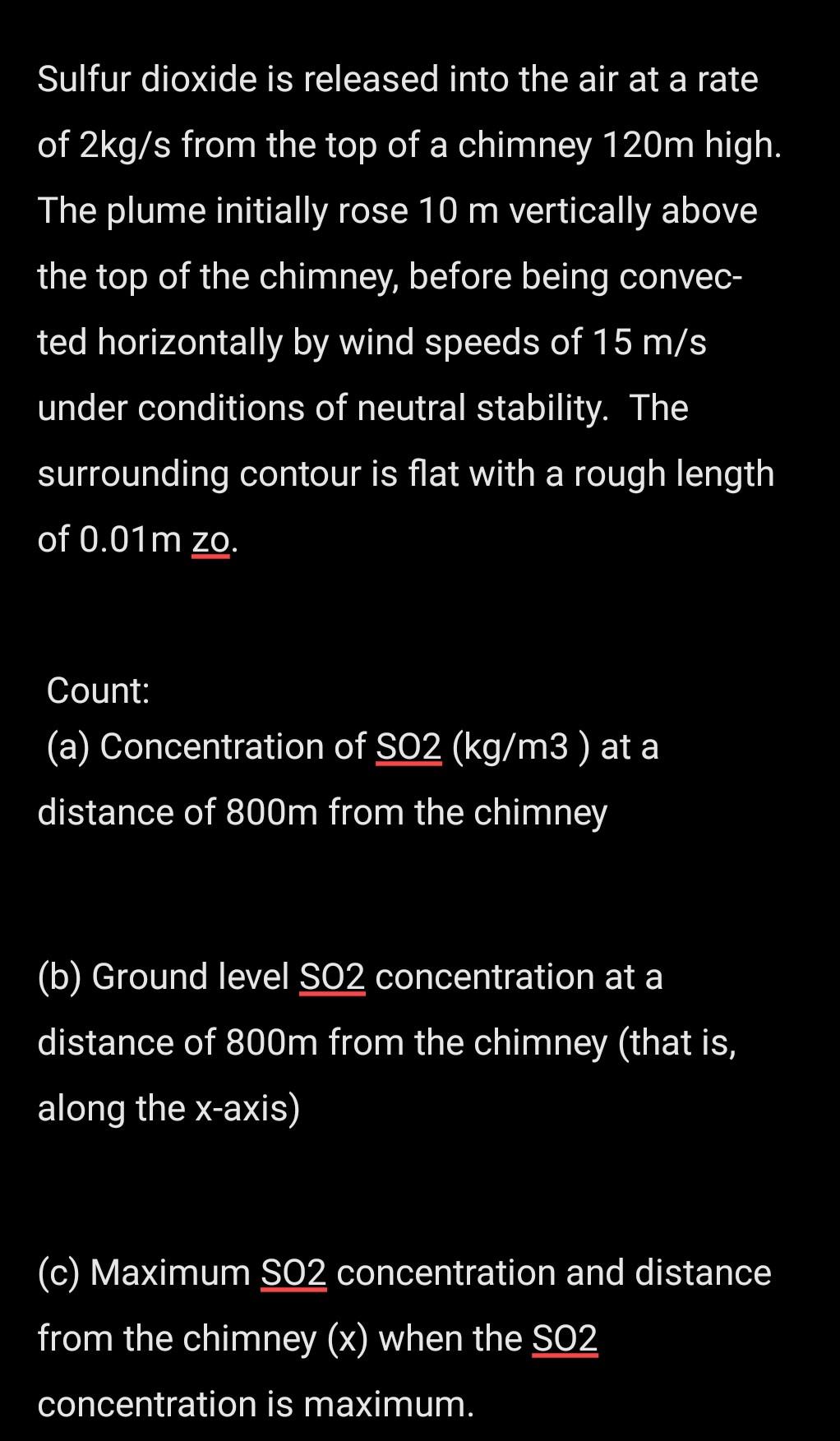

Sulfur dioxide is released into the air at a rate of 2kg/s from the top of a chimney 120m high. The plume initially rose 10 m vertically above the top of the chimney, before being convec- ted horizontally by wind speeds of 15 m/s under conditions of neutral stability. The surrounding contour is flat with a rough length of 0.01m zo. Count: (a) Concentration of SO2 (kg/m3) at a distance of 800m from the chimney (b) Ground level SO2 concentration at a distance of 800m from the chimney (that is, along the x-axis) (c) Maximum SO2 concentration and distance from the chimney (x) when the SO2 concentration is maximum.
