10. The strain rosette shown in the figure was used to obtain normal strain data at a point on the free surface of a mac

[answerhappygod]

10 The Strain Rosette Shown In The Figure Was Used To Obtain Normal Strain Data At A Point On The Free Surface Of A Mac 1 (23.17 KiB) Viewed 17 times

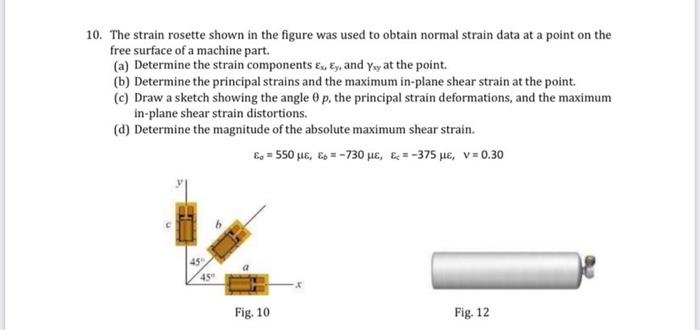

10. The strain rosette shown in the figure was used to obtain normal strain data at a point on the free surface of a machine part. (a) Determine the strain components E, Ey, and Yay at the point. (b) Determine the principal strains and the maximum in-plane shear strain at the point. (c) Draw a sketch showing the angle 0 p, the principal strain deformations, and the maximum in-plane shear strain distortions. (d) Determine the magnitude of the absolute maximum shear strain. E = 550 μ, &=-730 μ, &=-375 μ, v=0.30 45 Fig. 12 45 Fig. 10
