- 14 A Hollow Shaft With An Outside Diameter Of 400 Mm And An Inside Diameter Of 350 Mm Is Subjected To Both A Torque Of 1 (235.02 KiB) Viewed 28 times
14. A hollow shaft with an outside diameter of 400 mm and an inside diameter of 350 mm is subjected to both a torque of
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
14. A hollow shaft with an outside diameter of 400 mm and an inside diameter of 350 mm is subjected to both a torque of

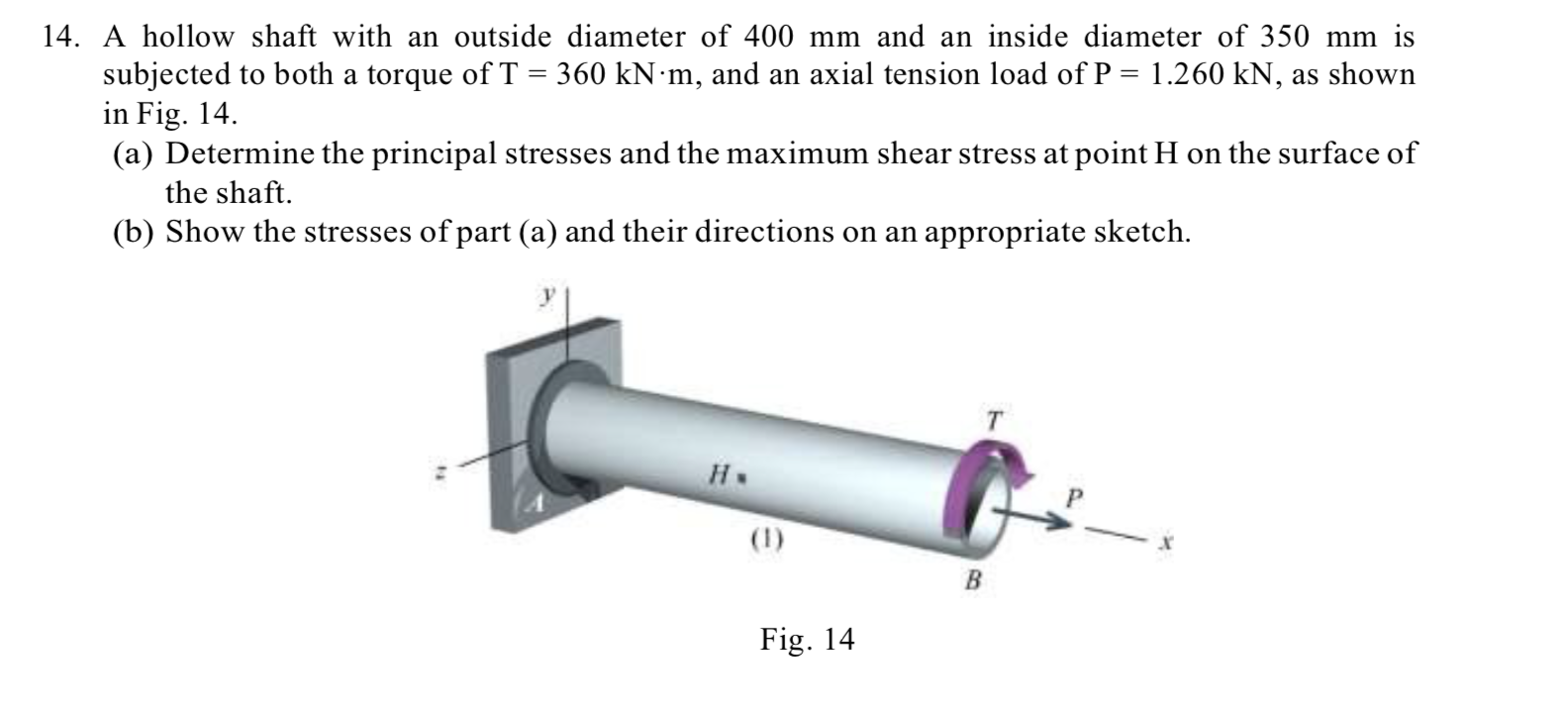

14. A hollow shaft with an outside diameter of 400 mm and an inside diameter of 350 mm is subjected to both a torque of T = 360 kN·m, and an axial tension load of P = 1.260 kN, as shown in Fig. 14. (a) Determine the principal stresses and the maximum shear stress at point H on the surface of the shaft. (b) Show the stresses of part (a) and their directions on an appropriate sketch. HN B Fig. 14
