Question 1 A 150 x 75 x 12 angle shown in Figure 1 is connected to a gusset plate using a E70XX 10mm weld. Using S355JR

[answerhappygod]

Question 1 A 150 X 75 X 12 Angle Shown In Figure 1 Is Connected To A Gusset Plate Using A E70xx 10mm Weld Using S355jr 1 (46.14 KiB) Viewed 32 times

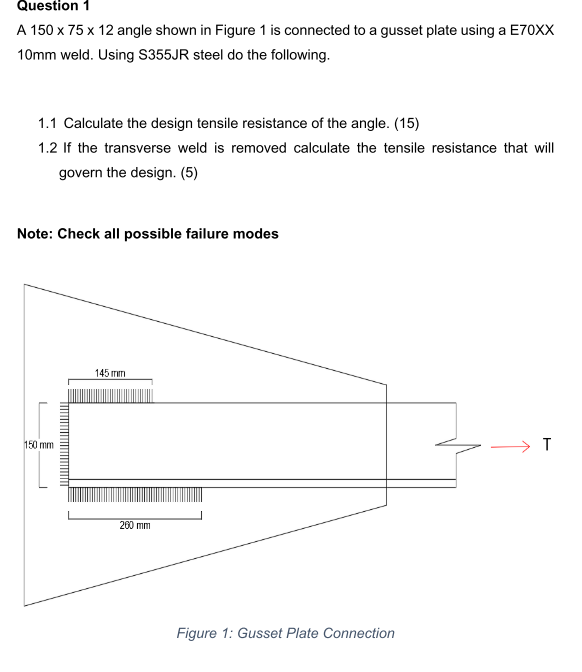

Question 1 A 150 x 75 x 12 angle shown in Figure 1 is connected to a gusset plate using a E70XX 10mm weld. Using S355JR steel do the following. 1.1 Calculate the design tensile resistance of the angle. (15) 1.2 If the transverse weld is removed calculate the tensile resistance that will govern the design. (5) Note: Check all possible failure modes 145 mm T 150 mm 260 mm Figure 1: Gusset Plate Connection
