Question 24 of 25 -/2 E: View Policies Current Attempt in Progress A hollow crank with an outside diameter of 2.0 in, an

Post by answerhappygod »

Question 24 Of 25 2 E View Policies Current Attempt In Progress A Hollow Crank With An Outside Diameter Of 2 0 In An 1
Question 24 Of 25 2 E View Policies Current Attempt In Progress A Hollow Crank With An Outside Diameter Of 2 0 In An 1 (31.99 KiB) Viewed 35 times

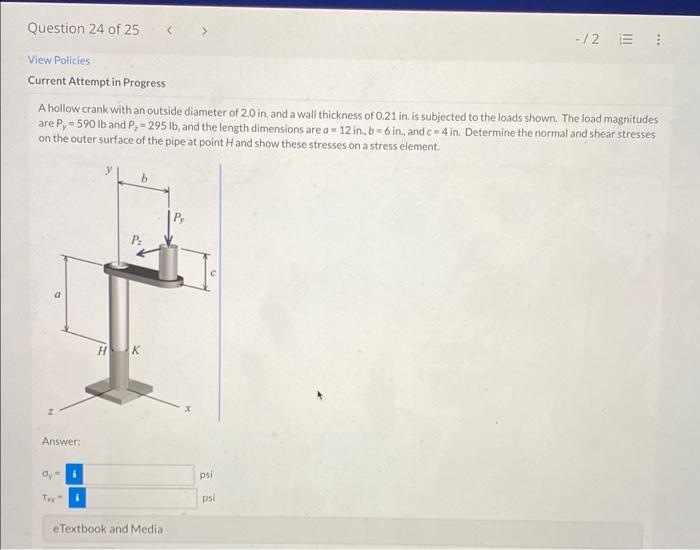

Question 24 of 25 -/2 E: View Policies Current Attempt in Progress A hollow crank with an outside diameter of 2.0 in, and a wall thickness of 0.21 in. is subjected to the loads shown. The load magnitudes are P, 590 lb and P, 295 lb, and the length dimensions are a 12 in., b-6 in, and c-4 in. Determine the normal and shear stresses on the outer surface of the pipe at point H and show these stresses on a stress element. P₂ H K Answer: Oy Tay eTextbook and Media psi psi
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
