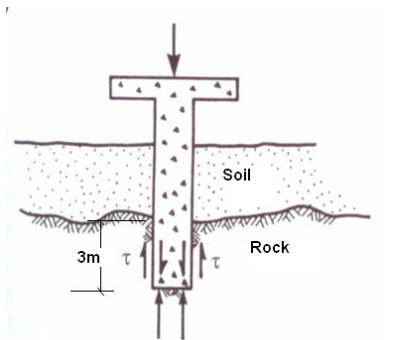

A single bored pile is socketed into siltstone rock as
shown.
Assuming:
The safe bearing pressure of the siltstone = 3MPa
Allowable shaft friction =0.5MPa
Rock socket depth = 3m
Pile base area = 0.5 m2
A Single Bored Pile Is Socketed Into Siltstone Rock As Shown Assuming The Safe Bearing Pressure Of The Siltstone 3mp 1 (85.58 KiB) Viewed 67 times
If shaft friction is ignored, the safe bearing load of the
single pile is:
A Single Bored Pile Is Socketed Into Siltstone Rock As Shown Assuming The Safe Bearing Pressure Of The Siltstone 3mp 2 (4.89 KiB) Viewed 67 times
3m T Soil Rock
O 2.5 MN O 3 MN O 0.5 MN O 1.5 MN
