Question 7 (5 marks) The 1.2-kg slider is released from rest in position A and slides without friction along the vertica

[answerhappygod]

Question 7 5 Marks The 1 2 Kg Slider Is Released From Rest In Position A And Slides Without Friction Along The Vertica 1 (231.59 KiB) Viewed 43 times

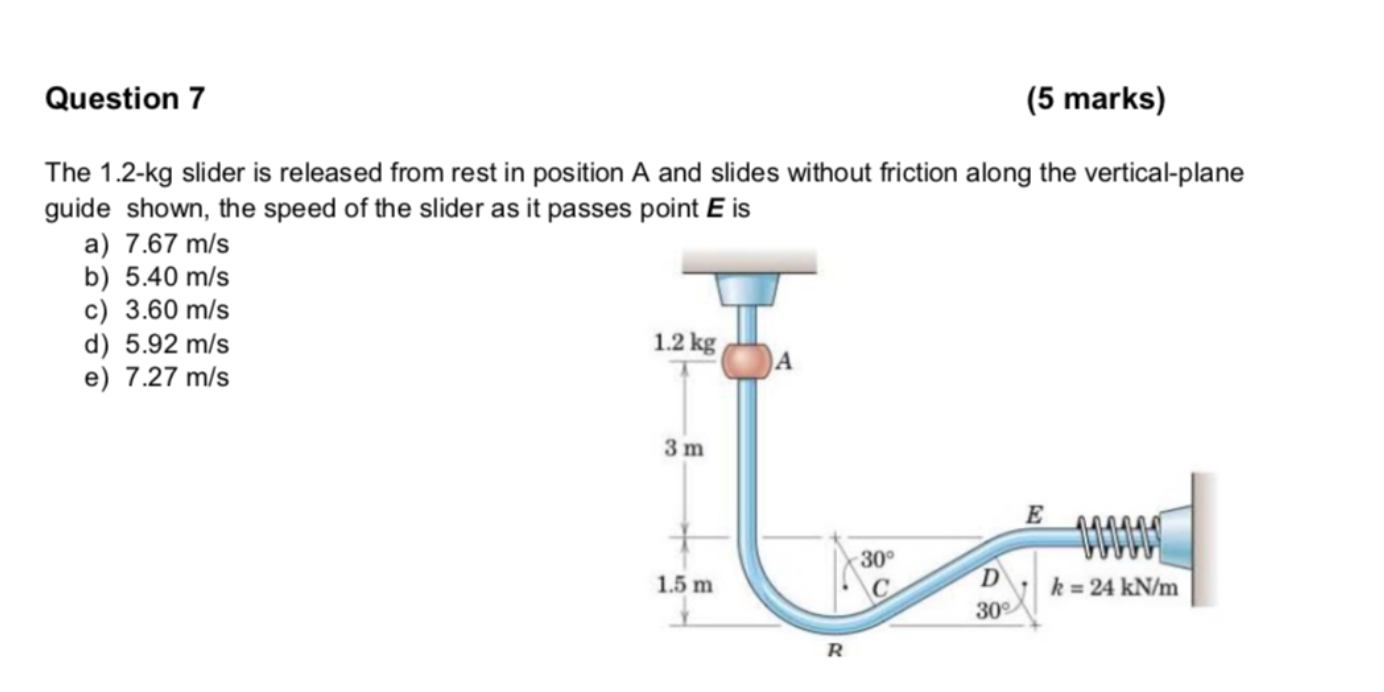

Question 7 (5 marks) The 1.2-kg slider is released from rest in position A and slides without friction along the vertical-plane guide shown, the speed of the slider as it passes point E is a) 7.67 m/s b) 5.40 m/s c) 3.60 m/s d) 5.92 m/s 1.2 kg e) 7.27 m/s 3m E hond 1.5 m k = 24 kN/m R 30° D 30°
