The beam shown in Figure 2 supports a distributed live load of 5.0 kN/m and a single concentrated load of P = 10 kN. The
-
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The beam shown in Figure 2 supports a distributed live load of 5.0 kN/m and a single concentrated load of P = 10 kN. The

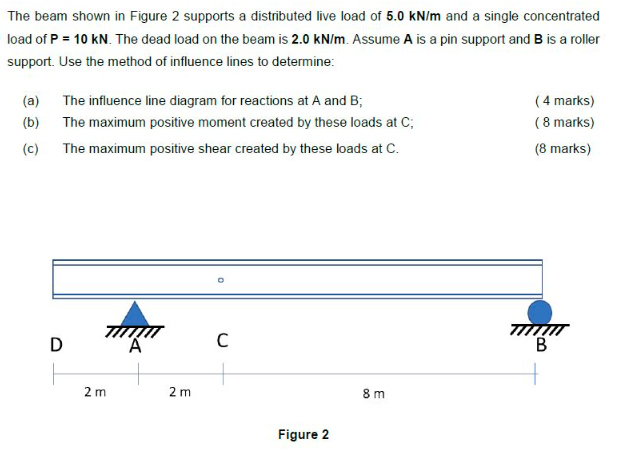

The beam shown in Figure 2 supports a distributed live load of 5.0 kN/m and a single concentrated load of P = 10 kN. The dead load on the beam is 2.0 kN/m. Assume A is a pin support and B is a roller support. Use the method of influence lines to determine: (a) The influence line diagram for reactions at A and B; (4 marks) (b) (8 marks) The maximum positive moment created by these loads at C; The maximum positive shear created by these loads at C. (8 marks) (c) O C D B 8m 2 m 2 m Figure 2
