[30 pts] 2.) St.Km. PVI= 3+2$$.00 Elev. PVI= 34# m, L=40# m PVT PVC In a parabolic type of a crest vertical curve as sho

[answerhappygod]

30 Pts 2 St Km Pvi 3 2 00 Elev Pvi 34 M L 40 M Pvt Pvc In A Parabolic Type Of A Crest Vertical Curve As Sho 1 (58.81 KiB) Viewed 29 times

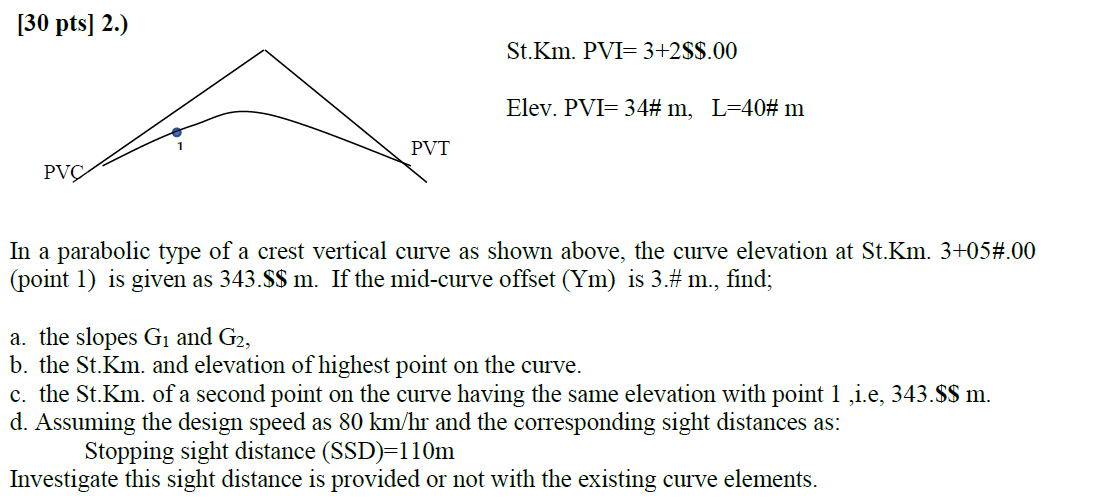

[30 pts] 2.) St.Km. PVI= 3+2$$.00 Elev. PVI= 34# m, L=40# m PVT PVC In a parabolic type of a crest vertical curve as shown above, the curve elevation at St.Km. 3+05#.00 (point 1) is given as 343.$$ m. If the mid-curve offset (Ym) is 3.# m., find; a. the slopes G₁ and G₂, b. the St.Km. and elevation of highest point on the curve. c. the St.Km. of a second point on the curve having the same elevation with point 1,i.e, 343.$$ m. d. Assuming the design speed as 80 km/hr and the corresponding sight distances as: Stopping sight distance (SSD)=110m Investigate this sight distance is provided or not with the existing curve elements.
